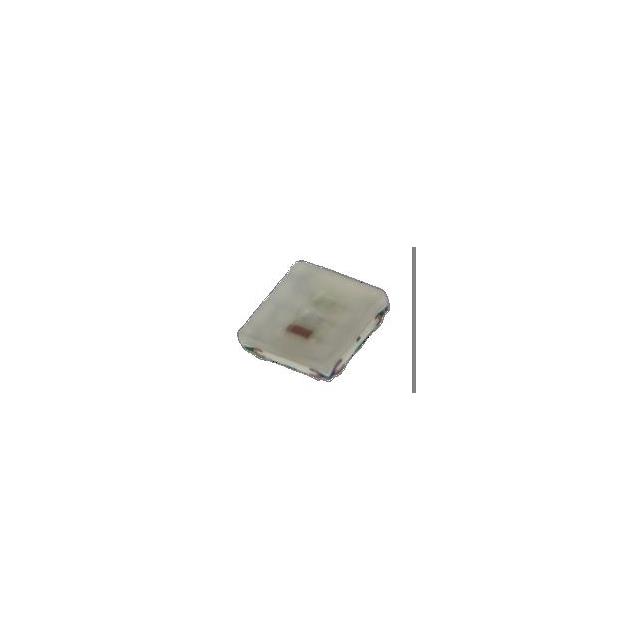

B3CQ3RBG-02DX001H4U1930
ActiveHarvatek Corporation
LED RGB DIFFUSED SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B3CQ3RBG-02DX001H4U1930
ActiveHarvatek Corporation
LED RGB DIFFUSED SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B3CQ3RBG-02DX001H4U1930 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 2 mA |
| Current - Test [custom] | 2 mA |
| Current - Test [custom] | 2 mA |
| Height (Max) [Max] | 0.35 mm |
| Lens Color | Colorless |
| Lens Size | 0.95 mm |
| Lens Style | Square with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 347.25 mcd |
| Millicandela Rating [custom] | 347.25 mcd |
| Millicandela Rating [custom] | 347.25 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | Chip LED |
| Viewing Angle | 120 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.21 | |
| Digi-Reel® | 1 | $ 0.21 | ||
| Tape & Reel (TR) | 4000 | $ 0.20 | ||
Description
General part information
B3CQ3RBG-02DX001H4U1930
Red, Green, Blue (RGB) LED Indication - Discrete 2V Red, 2.5V Green, 2.7V Blue 4-SMD, No Lead
