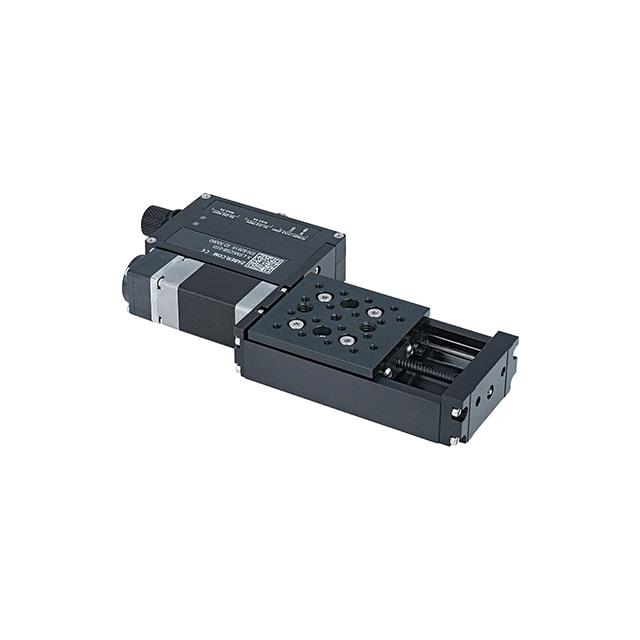

X-LSM150B-SE03-KX13A
ActiveZaber Technologies
LINEAR STAGE 150MM MPITCH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
X-LSM150B-SE03-KX13A
ActiveZaber Technologies
LINEAR STAGE 150MM MPITCH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X-LSM150B-SE03-KX13A |
|---|---|
| Accuracy | 65 µm |
| Approval Agency | CE |
| Construction | Lead Screw |
| Duty Cycle | 100 % |
| Features | Translation Stage, Integrated Controller |
| Feedback Type | Incremental Encoder |
| Load Force (Dynamic) | 250 N |
| Load Force (Dynamic) | 56.2 lbf |
| Load Force (Static) | 250 N |
| Load Force (Static) | 56.2 lbf |
| Motor Type | Stepper, Bipolar |
| Speed | 107 mm/s |
| Speed | 4.21 in/s |
| Stroke Length [x] | 6 in |
| Stroke Length [x] | 152.4 mm |
| Termination Style | Connector |
| Type | Linear Axis |
| Voltage - Rated [Max] | 48 V |
| Voltage - Rated [Min] | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3164.70 | |
Description
General part information
X-LSM150B-SE03-KX13A
LINEAR STAGE 150MM MPITCH
Documents
Technical documentation and resources
