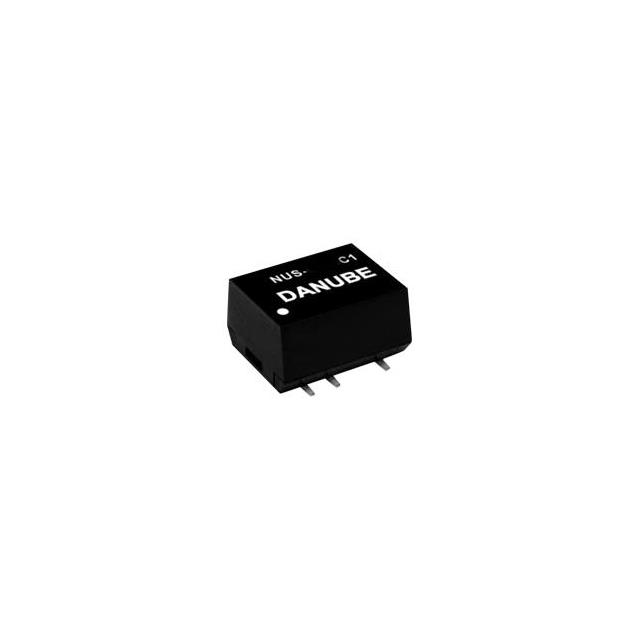

NUS-2415C1
ActiveDiwell Electronics
DC DC CONVERTER 15V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NUS-2415C1
ActiveDiwell Electronics
DC DC CONVERTER 15V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NUS-2415C1 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 67 mA |
| Efficiency | 76 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension [x] | 12.9 mm |
| Size / Dimension [x] | 0.51 " |
| Size / Dimension [y] | 0.43 in |
| Size / Dimension [y] | 10.9 mm |
| Size / Dimension [z] | 0.28 " |
| Size / Dimension [z] | 7.1 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 2.77 | |
| 5 | $ 2.54 | |||
| 10 | $ 2.44 | |||
| 25 | $ 2.32 | |||
| 50 | $ 2.23 | |||
| 100 | $ 2.15 | |||
| 250 | $ 2.04 | |||
| 500 | $ 1.96 | |||
Description
General part information
NUS-2415C1
Isolated Module DC DC Converter 1 Output 15V 67mA 21.6V - 26.4V Input
