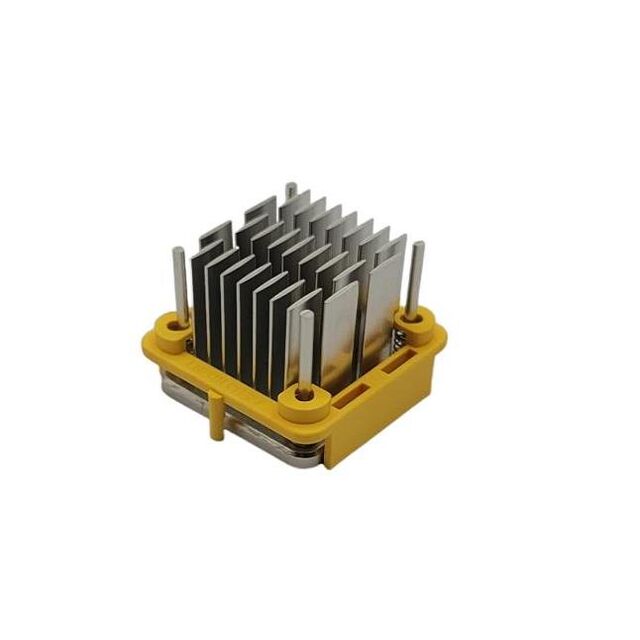

UNI-H27051-15W/2.6Y
ActiveMalico Inc.
AL HEAT SINK 27X27X15MM WITH ELL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UNI-H27051-15W/2.6Y
ActiveMalico Inc.
AL HEAT SINK 27X27X15MM WITH ELL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UNI-H27051-15W/2.6Y |
|---|---|
| Attachment Method | Clip |
| Fin Height [z] | 0.472 in |
| Fin Height [z] | 12 mm |
| Length | 1.063 in |
| Length | 27 mm |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | BGA |
| Shape | Square, Fins |
| Thermal Resistance @ Forced Air Flow | 200 LFM, 3.89 °C/W |
| Thermal Resistance @ Natural | 12.29 °C/W |
| Type | Top Mount |
| Width [y] | 1.063 in |
| Width [y] | 27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.78 | |
| 10 | $ 4.25 | |||
| 25 | $ 4.05 | |||
| 40 | $ 3.95 | |||
| 80 | $ 3.81 | |||
| 230 | $ 3.61 | |||
| 440 | $ 3.49 | |||
| 945 | $ 3.35 | |||
Description
General part information
UNI-H27051-15W/2.6Y
Heat Sink BGA Aluminum Alloy Top Mount
Documents
Technical documentation and resources
