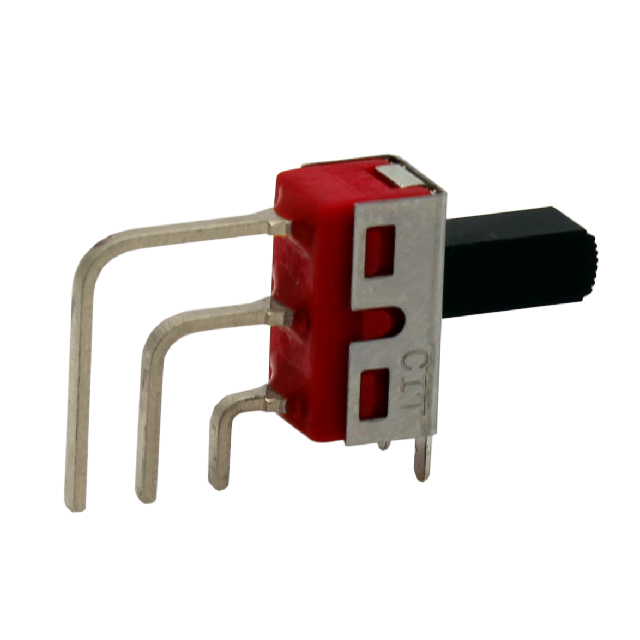

1101A3VQEA
ActiveCIT Relay and Switch
SWITCH SLIDE SPDT 5A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1101A3VQEA
ActiveCIT Relay and Switch
SWITCH SLIDE SPDT 5A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1101A3VQEA |
|---|---|
| Actuator Length [x] | 9.04 mm |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Type | Standard |
| Circuit | SPDT |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 5 A |
| Electrical Life | 30000 Cycles |
| Mounting Type | Through Hole, Vertical, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | On-On |
| Switch Travel [x] | 2.24 mm |
| Termination Style | PC Pin |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 2.43 | |
Description
General part information
1101A3VQEA
Slide Switch SPDT Through Hole, Right Angle, Vertical
Documents
Technical documentation and resources
