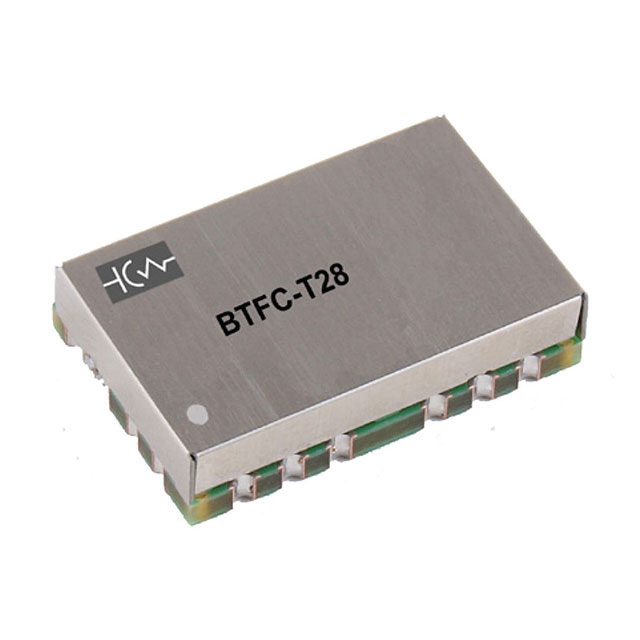

BTFC-T28-523SC-010.0M-010.0M
ActiveConnor Winfield
XTAL OSC TCXO 10.0MHZ DUAL OUT S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BTFC-T28-523SC-010.0M-010.0M
ActiveConnor Winfield
XTAL OSC TCXO 10.0MHZ DUAL OUT S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BTFC-T28-523SC-010.0M-010.0M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 270 mA |
| Frequency - Output 1 | 100 MHz |
| Frequency Stability | 280 ppb |
| Height [z] | 5.59 mm |
| Height [z] | 0.22 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Sine Wave, CMOS |
| Package / Case | 16-SMD Module |
| Size / Dimension | 0.545 in, 0.825 in |
| Size / Dimension | 13.84 mm, 20.95 mm |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 63.00 | |
| 10 | $ 60.75 | |||
| 25 | $ 60.30 | |||
| 50 | $ 59.85 | |||
| 100 | $ 56.25 | |||
Description
General part information
BTFC-T28-523SC-010.0M-010.0M
CMOS, Sine Wave TCXO Pin Configurable Oscillator 3.3V 16-SMD Module
