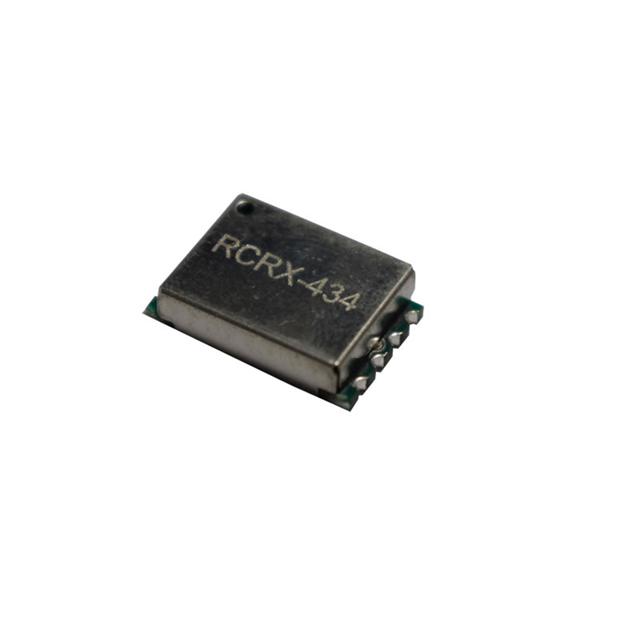

RCRX-434
ActiveRadioControlli
433.92MHZ AM RECEIVER MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RCRX-434 |
|---|---|
| Applications | AM Radio Receiver |
| Current - Receiving | 5.5 mA |
| Data Rate (Max) [Max] | 10 kbps |
| Frequency | 433.92 MHz |
| Modulation or Protocol | ASK, AM, OOK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 8-SMD Module |
| Sensitivity | -108 dBm |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 4.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 4 | $ 19.00 | |
| 12 | $ 9.00 | |||
| 20 | $ 7.00 | |||
Description
General part information
RCRX-434
- RF Receiver AM, ASK, OOK 433.92MHz -108dBm 10kbps
