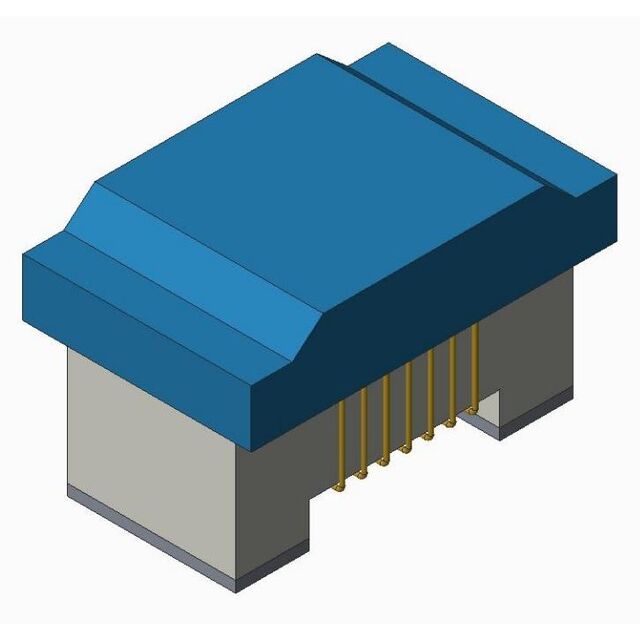

0603CS-4N3EGTS
ActiveDelta Electronics/Components
FIXED IND 4.3NH 700MA 63MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0603CS-4N3EGTS
ActiveDelta Electronics/Components
FIXED IND 4.3NH 700MA 63MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0603CS-4N3EGTS |
|---|---|
| Current Rating (Amps) | 700 mA |
| DC Resistance (DCR) | 63 mOhm |
| Frequency - Self Resonant | 5.8 GHz |
| Height - Seated (Max) [Max] | 1.02 mm |
| Height - Seated (Max) [Max] [z] | 0.04 " |
| Inductance | 4.3 nH |
| Inductance Frequency - Test | 250 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Q @ Freq | 250 MHz, 22 |
| Shielding | Unshielded |
| Size / Dimension [x] | 1.8 mm |
| Size / Dimension [x] | 0.071 in |
| Size / Dimension [y] | 0.046 in |
| Size / Dimension [y] | 1.16 mm |
| Tolerance | 2 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4000 | $ 0.09 | |
Description
General part information
0603CS-4N3EGTS
4.3 nH Unshielded Drum Core, Wirewound Inductor 700 mA 63mOhm 0603 (1608 Metric)
