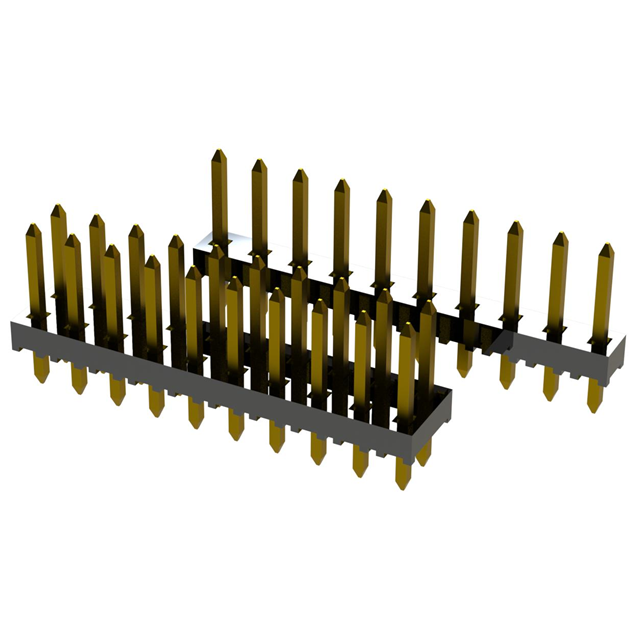

TSHS-213-D-02-T-LF
ActiveMajor League Electronics
.079 HEADER
Deep-Dive with AI
Search across all available documentation for this part.
TSHS-213-D-02-T-LF
ActiveMajor League Electronics
.079 HEADER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TSHS-213-D-02-T-LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 3.2 mm |
| Contact Length - Mating | 0.126 " |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 1.5 mm |
| Insulation Height | 0.059 " |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 8.2 mm |
| Overall Contact Length | 0.323 in |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.50 | |
Description
General part information
TSHS-213-D-02-T-LF
Connector Header Through Hole 26 position 0.079" (2.00mm)
Documents
Technical documentation and resources
No documents available
