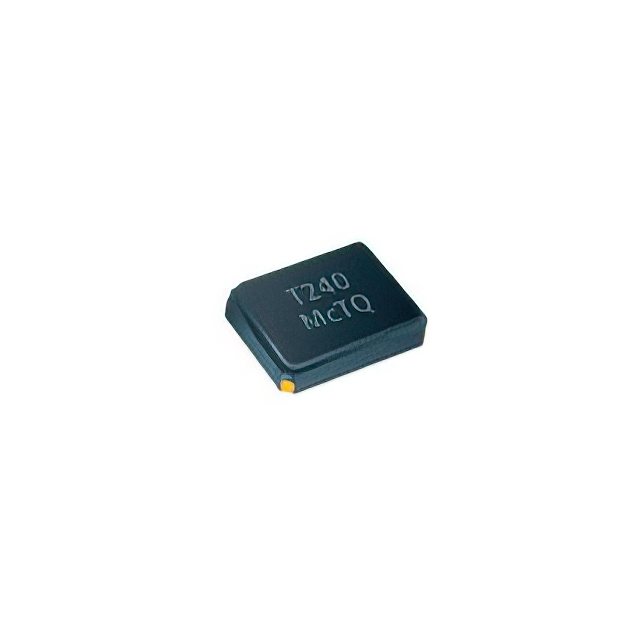

7R-27.000MEDQ-T
ActiveFTS
2.0X1.6 XTAL 10PPM 20PPM 10PF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7R-27.000MEDQ-T
ActiveFTS
2.0X1.6 XTAL 10PPM 20PPM 10PF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7R-27.000MEDQ-T |
|---|---|
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Frequency | 27 MHz |
| Frequency Stability | 20 ppm |
| Height - Seated (Max) [Max] [z] | 0.6 mm |
| Height - Seated (Max) [Max] [z] | 0.024 in |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2.05 mm |
| Size / Dimension [x] | 0.081 in |
| Size / Dimension [y] | 0.065 in |
| Size / Dimension [y] | 1.65 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.70 | |
| 10 | $ 0.58 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.46 | |||
| 500 | $ 0.44 | |||
| Digi-Reel® | 1 | $ 0.70 | ||
| 10 | $ 0.58 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.46 | |||
| 500 | $ 0.44 | |||
| Tape & Reel (TR) | 1 | $ 0.46 | ||
| 10 | $ 0.40 | |||
| 50 | $ 0.36 | |||
| 100 | $ 0.29 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.21 | |||
| 3000 | $ 0.19 | |||
| 3000 | $ 0.35 | |||
| 10000 | $ 0.17 | |||
| 25000 | $ 0.16 | |||
Description
General part information
7R-27.000MEDQ-T
27 MHz Crystal 10pF 150 Ohms 4-SMD, No Lead
