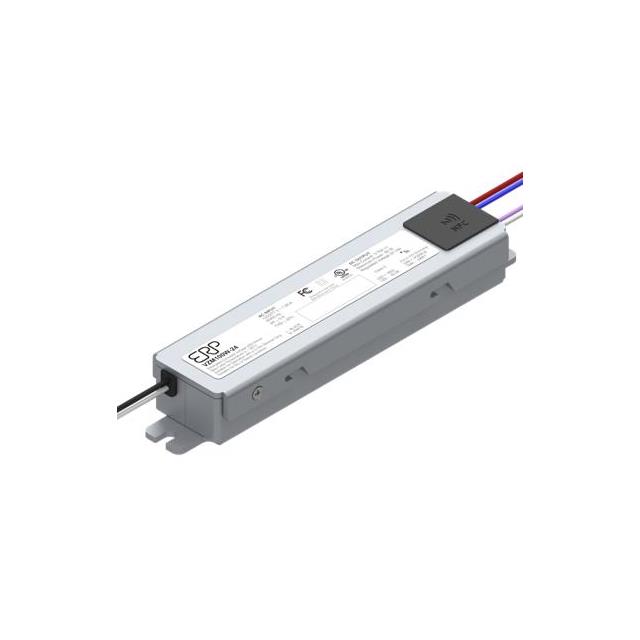

VZM100W-24-FN
ObsoleteERP Power, LLC
120 & 277 VAC, 90% EFF., RECTANG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VZM100W-24-FN
ObsoleteERP Power, LLC
120 & 277 VAC, 90% EFF., RECTANG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VZM100W-24-FN |
|---|---|
| Approval Agency | cULus, FCC |
| Current - Output (Max) [Max] | 3.75 A |
| Dimming | Analog |
| Efficiency | 90 % |
| Features | OTP, SCP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 90 W |
| Ratings | IP20 |
| Size / Dimension [x] | 150.1 mm |
| Size / Dimension [x] | 5.91 " |
| Size / Dimension [y] | 38.9 mm |
| Size / Dimension [y] | 1.53 in |
| Size / Dimension [z] | 0.98 in |
| Size / Dimension [z] | 24.9 mm |
| Standard Number | 60950-1 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 120 VAC |
| Voltage - Isolation | 2000 V |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VZM100W-24-FN
3.75A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
