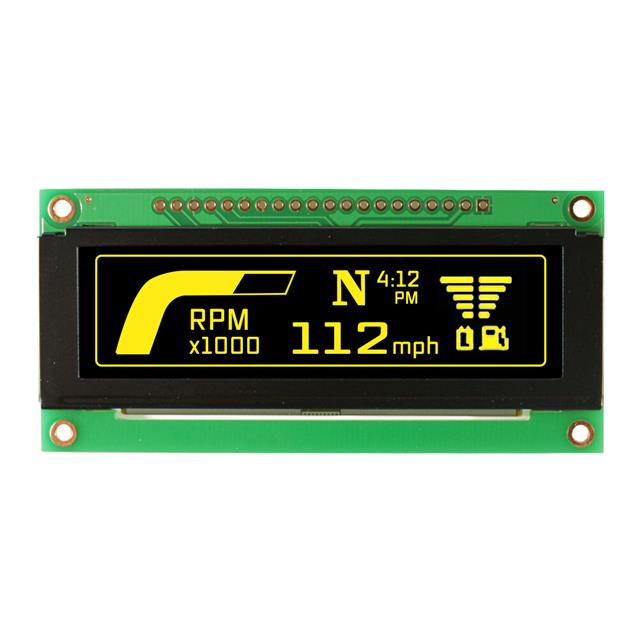

NHD-2.8-25664UCY2
ActiveNewhaven Display Intl
LCD OLED GRAPHIC 256 X 64 YLW
Deep-Dive with AI
Search across all available documentation for this part.
NHD-2.8-25664UCY2
ActiveNewhaven Display Intl
LCD OLED GRAPHIC 256 X 64 YLW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-2.8-25664UCY2 |
|---|---|
| Background Color | Black |
| Backlight | Without Backlight |
| Controller Type | SSD1322 |
| Diagonal Screen Size | 2.8 in |
| Diagonal Screen Size | 71.12 mm |
| Display Type | OLED - Passive Matrix |
| Dot Pitch [x] | 0.27 mm |
| Dot Pitch [y] | 0.27 mm |
| Dot Pixels [x] | 256 |
| Dot Pixels [y] | 64 |
| Dot Size [x] | 0.25 mm |
| Dot Size [y] | 0.25 mm |
| Graphics Color | Yellow |
| Interface | 8-Bit, SPI, Parallel |
| Viewing Area [y] | 72 mm |
| Viewing Area [z] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.69 | |
| 5 | $ 34.49 | |||
| 10 | $ 32.29 | |||
| 50 | $ 31.99 | |||
Description
General part information
NHD-2.8-25664UCY2
Graphic LCD Display Module Yellow OLED - Passive Matrix Parallel, 8-Bit, SPI 2.8" (71.12mm) 256 x 64
