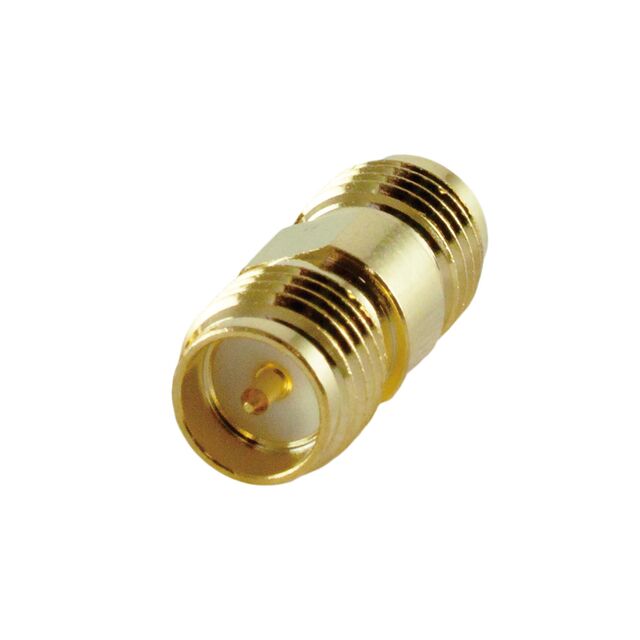

AD-SABSAD-001M
ActiveJoymax Electronics
RF ADP SMA JACK TO RP-SMA JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AD-SABSAD-001M
ActiveJoymax Electronics
RF ADP SMA JACK TO RP-SMA JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AD-SABSAD-001M |
|---|---|
| Adapter Series | SMA to RP-SMA |
| Adapter Type | Jack to Jack |
| Center Contact Plating | Gold |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | RP-SMA Jack, Male Pin |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.68 | |
| 10 | $ 6.16 | |||
| 25 | $ 5.71 | |||
| 100 | $ 5.32 | |||
| 250 | $ 4.98 | |||
| 500 | $ 4.69 | |||
Description
General part information
AD-SABSAD-001M
Adapter Coaxial Connector SMA Jack, Female Socket To RP-SMA Jack, Male Pin 50 Ohms
