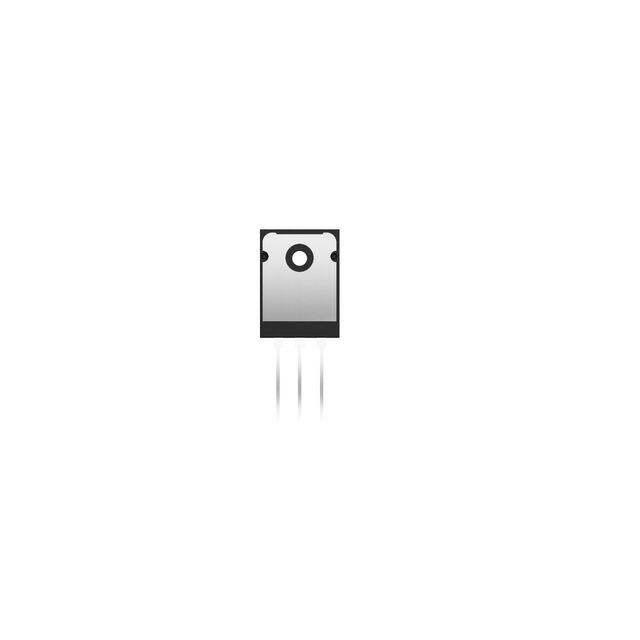

NJW0302G
ActiveEVVO
TRANS PNP 250V 15A TO3P-3L
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJW0302G
ActiveEVVO
TRANS PNP 250V 15A TO3P-3L
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJW0302G |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 15 A |
| Current - Collector Cutoff (Max) [Max] | 10 µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 hFE |
| Frequency - Transition | 30 MHz |
| Mounting Type | Through Hole |
| Operating Temperature | 150 °C |
| Package / Case | SC-65-3, TO-3P-3 |
| Power - Max [Max] | 150 W |
| Supplier Device Package | TO-3P |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 3 V |
| Voltage - Collector Emitter Breakdown (Max) | 230 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.67 | |
| 10 | $ 2.40 | |||
| 100 | $ 1.68 | |||
| 500 | $ 1.37 | |||
| 1000 | $ 1.27 | |||
| 2000 | $ 1.20 | |||
Description
General part information
NJW0302G
Bipolar (BJT) Transistor PNP 230 V 15 A 30MHz 150 W Through Hole TO-3P
