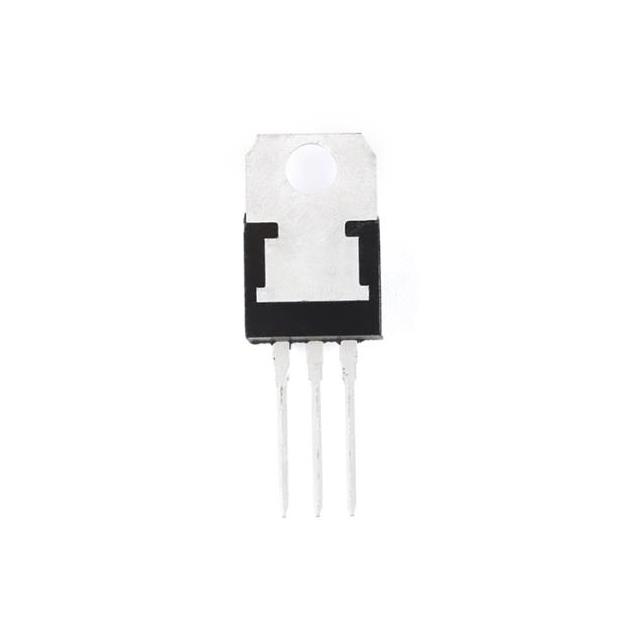

L7805CV
ActiveUMW
1.2A FIXED 5V~5V POSITIVE 1 35V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L7805CV
ActiveUMW
1.2A FIXED 5V~5V POSITIVE 1 35V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L7805CV |
|---|---|
| Current - Output | 1.2 A |
| Current - Quiescent (Iq) | 6 mA |
| Mounting Type | Through Hole |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Voltage - Input (Max) [Max] [custom] | 35 V |
| Voltage - Output (Min/Fixed) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.86 | |
| 10 | $ 0.75 | |||
| 50 | $ 0.71 | |||
| 100 | $ 0.58 | |||
| 250 | $ 0.54 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.36 | |||
| 2500 | $ 0.33 | |||
| 5000 | $ 0.31 | |||
Description
General part information
L7805CV
Linear Voltage Regulator IC Positive Fixed 1 Output 1.2A TO-220
