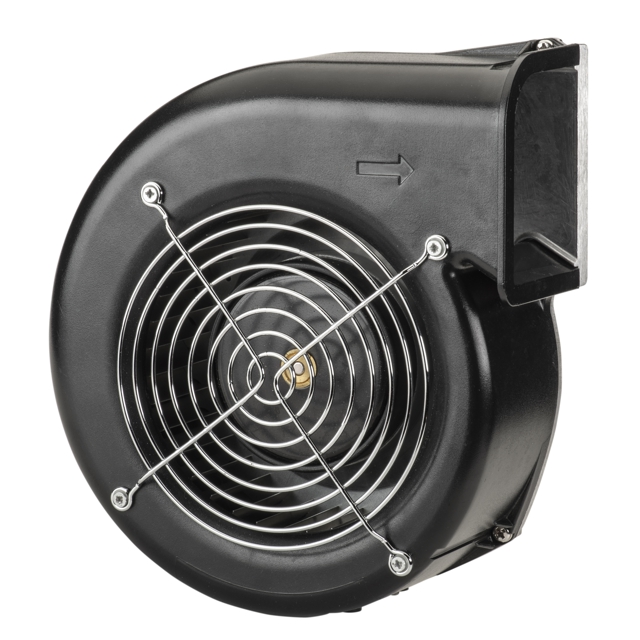

P1970M12BALA2A-38
ActivePelonis Technologies
FAN BLOWER 193X72MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
P1970M12BALA2A-38
ActivePelonis Technologies
FAN BLOWER 193X72MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P1970M12BALA2A-38 |
|---|---|
| Air Flow | 106.4 CFM |
| Air Flow | 3.01 m³/min |
| Approval Agency | cUL, UL, CE |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | Polarity Protection, Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) |
| Noise | 50.7 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 28.8 W |
| RPM | 1500 RPM |
| Size / Dimension [x] | 193 mm |
| Size / Dimension [z] | 177 mm |
| Static Pressure | 1.4 in H2O |
| Static Pressure | 348.7 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Width [y] | 72 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
P1970M12BALA2A-38
Fan Blower 12VDC Rectangular/Round - 193mm L x 177mm H Ball 106.4 CFM (3.01m³/min) 3 Wire Leads
