SI2304A
ActiveUMW
SOT-23 N-CHANNEL POWER MOSFETS R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SI2304A
ActiveUMW
SOT-23 N-CHANNEL POWER MOSFETS R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SI2304A |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 3.6 A |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 7 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 555 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Power Dissipation (Max) | 1.25 W |
| Rds On (Max) @ Id, Vgs | 35 mOhm |
| Supplier Device Package | SOT-23 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.20 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.39 | ||
| 10 | $ 0.24 | |||
| 25 | $ 0.20 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.08 | ||
| 6000 | $ 0.07 | |||
| 15000 | $ 0.07 | |||
| 30000 | $ 0.06 | |||
| 75000 | $ 0.06 | |||
| 150000 | $ 0.05 | |||
Description
General part information

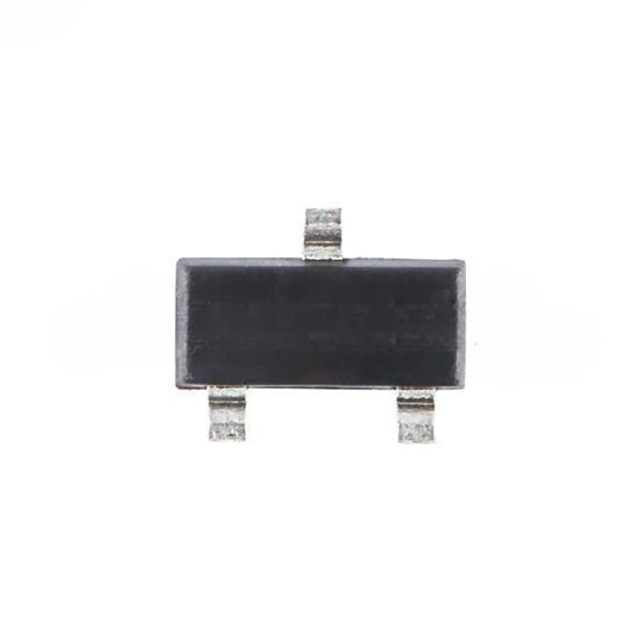

SI2304A
