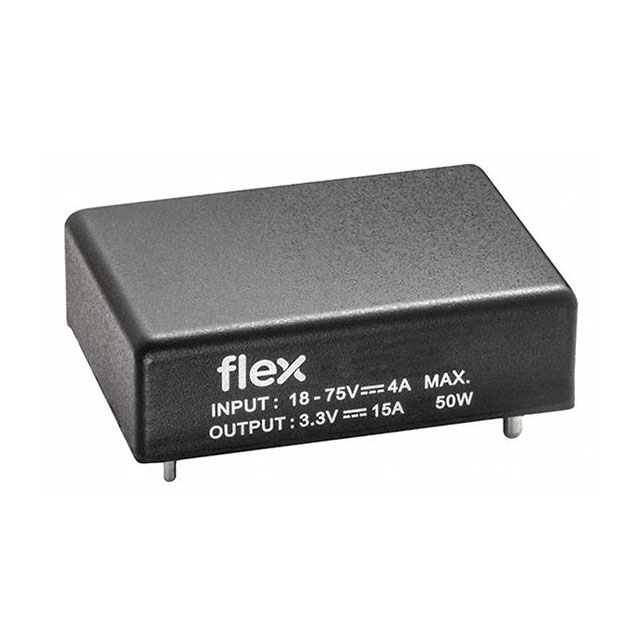

PKU5510SPI
ActiveFlex Power Modules
DC DC CONVERTER 3.3V 50W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PKU5510SPI
ActiveFlex Power Modules
DC DC CONVERTER 3.3V 50W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PKU5510SPI |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, UL, IEC, TUV, CSA |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 15 A |
| Efficiency | 90 % |
| Features | Remote On/Off, Adjustable Output, Remote Sense |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Sixteenth Brick |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 1.39 in |
| Size / Dimension [x] | 35.3 mm |
| Size / Dimension [y] | 25 mm |
| Size / Dimension [y] | 0.98 in |
| Size / Dimension [z] | 0.41 " |
| Size / Dimension [z] | 10.4 mm |
| Standard Number | 62368-1 |
| Supplier Device Package | Sixteenth Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 39.55 | |
Description
General part information
PKU5510SPI
Isolated Module DC DC Converter 1 Output 3.3V 15A 18V - 75V Input
