ABA3100S3P0
ActiveAnadigics
IC RF AMP CATV 50MHZ-1GHZ 16SOIC
Deep-Dive with AI
Search across all available documentation for this part.
ABA3100S3P0
ActiveAnadigics
IC RF AMP CATV 50MHZ-1GHZ 16SOIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ABA3100S3P0 |
|---|---|
| Current - Supply | 150 mA |
| Frequency [Max] | 1 GHz |
| Frequency [Min] | 50 MHz |
| Gain | 13 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 3.2 dB |

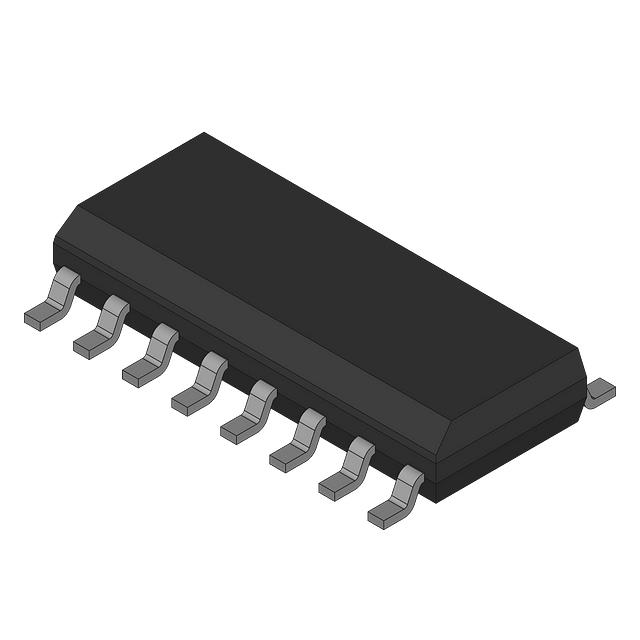

| Package / Case | 16-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| RF Type | CATV |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply [Max] | 9 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 72 | $ 4.20 | |
Description
General part information
ABA3100S3P0
RF Amplifier IC CATV 50MHz ~ 1GHz 16-SOIC
Documents
Technical documentation and resources
No documents available
