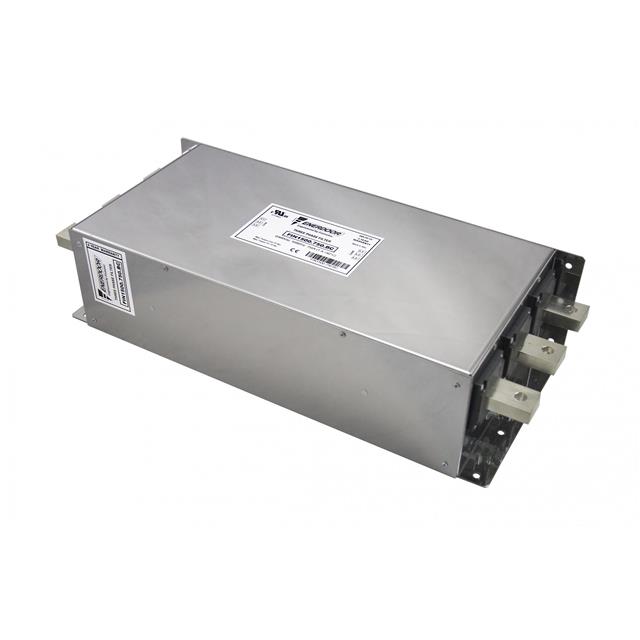

FIN1500.400.BC
ActiveEnerdoor
LINE FILTER 400A CHASSIS MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FIN1500.400.BC
ActiveEnerdoor
LINE FILTER 400A CHASSIS MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FIN1500.400.BC |
|---|---|
| Applications | Regenerative Motor Drive |
| Approval Agency | UL, CSA, CE, cURus |
| Configuration | Two Stage |
| Current | 400 A |
| Filter Type | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Terminal Post |
| Voltage - Rated AC (Phase to Ground/Neutral) | 2.9 kV |
| Voltage - Rated AC (Phase to Phase) | 2.2 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2194.73 | |
Description
General part information
FIN1500.400.BC
Three Phase (Delta) EMC/EMI Line Filter 400 A 50/60Hz Two Stage Terminal Post
