2HE1003
ActiveNorth Star Sensors LLC
5 INSULATED THERMISTOR, 30 K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2HE1003
ActiveNorth Star Sensors LLC
5 INSULATED THERMISTOR, 30 K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2HE1003 |
|---|---|
| B0/50 | 3811 K |
| B25/100 | 3966 K |
| B25/50 | 3878 K |
| B25/75 | 3926 K |
| B25/85 | 3943 KB |
| Length - Lead Wire [x] | 127 mm |
| Length - Lead Wire [x] | 5 in |
| Mounting Type | Free Hanging |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Bead |
| Resistance in Ohms @ 25°C | 30 k |
| Resistance Tolerance | 0.3 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
2HE1003

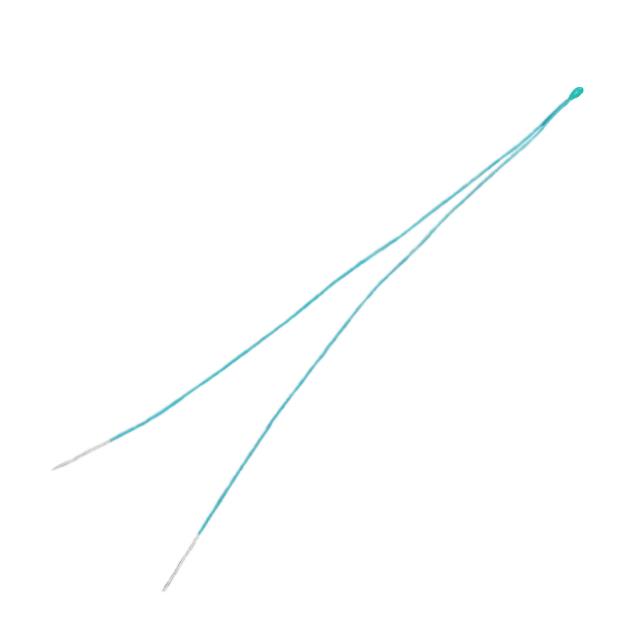

NTC Thermistor 30k Bead
Documents
Technical documentation and resources
