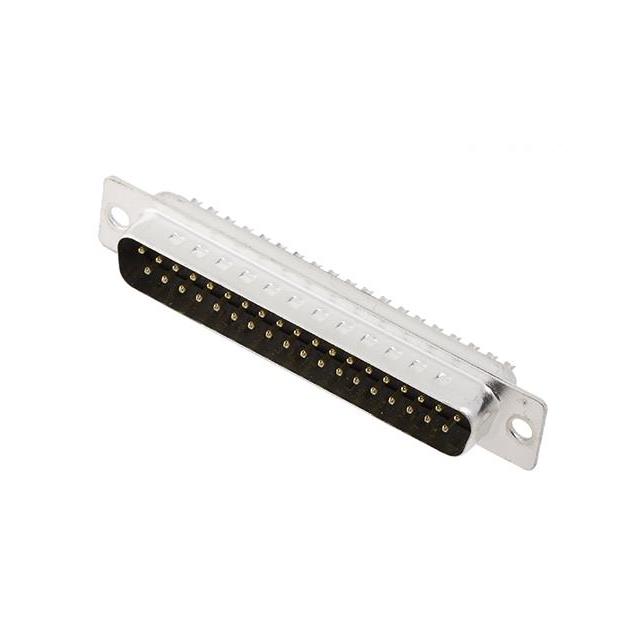

2101-0180-04
ActiveEncitech Connectors AB
D-SUB CONNECTOR, SOLDER CUP, 37P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2101-0180-04
ActiveEncitech Connectors AB
D-SUB CONNECTOR, SOLDER CUP, 37P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2101-0180-04 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Primary Material | Metal |
| Shell Size, Connector Layout | 4 (DC, C) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.57 | |
| 10 | $ 1.96 | |||
| 25 | $ 1.76 | |||
| 40 | $ 1.67 | |||
| 80 | $ 1.55 | |||
| 230 | $ 1.38 | |||
| 440 | $ 1.29 | |||
| 945 | $ 1.19 | |||
| 2400 | $ 1.09 | |||
Description
General part information
2101-0180-04
37 Position D-Sub Plug, Male Pins Connector
