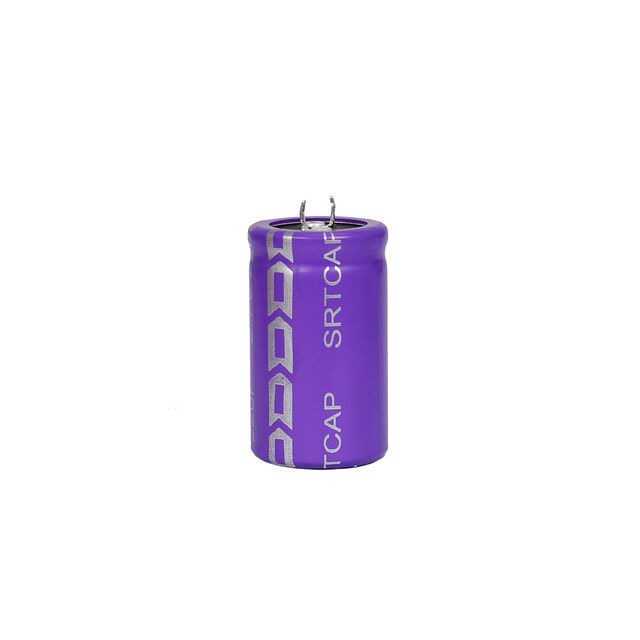

SCZ2R7367
ActiveSruite Electronic Technology (US)
CAP 360F -20% +80% 2.7V T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCZ2R7367
ActiveSruite Electronic Technology (US)
CAP 360F -20% +80% 2.7V T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCZ2R7367 |
|---|---|
| Capacitance | 360 F |
| ESR (Equivalent Series Resistance) | 4 Ohm |
| Height - Seated (Max) [Max] [z] | 2.362 in |
| Height - Seated (Max) [Max] [z] | 60 mm |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 1.378 in |
| Size / Dimension [diameter] | 35 mm |
| Termination | PC Pins |
| Tolerance [Max] | 80 % |
| Tolerance [Min] | -20 % |
| Voltage - Rated | 2.7 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.43 | |
| 5 | $ 10.41 | |||
| 10 | $ 10.38 | |||
| 50 | $ 10.35 | |||
| 100 | $ 10.30 | |||
| 500 | $ 10.25 | |||
| 1000 | $ 10.00 | |||
Description
General part information
SCZ2R7367
360 F (EDLC) Supercapacitor 2.7 V Radial, Can 4Ohm @ 1kHz 1000 Hrs @ 65°C
