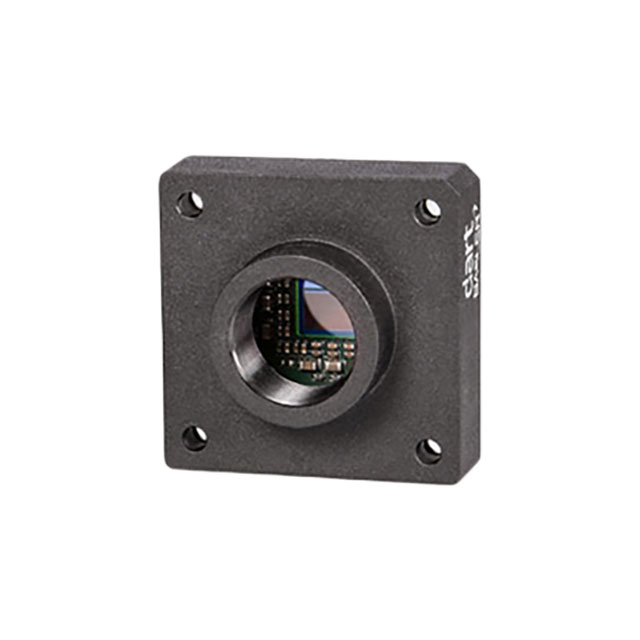

108013
ActiveBasler Inc.
4208 X 3120, 30 FPS, COLOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 108013 |
|---|---|
| Color | RGB |
| Frames per Second | 30 |
| Height (Max) [Max] | 0.689 in |
| Height (Max) [Max] | 17.5 mm |
| Interface | MIPI |
| Lens Mount | S |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Pixel Size [x] | 1.1 µm |
| Pixel Size [y] | 1.1 µm |
| Resolution [x] | 4208 |
| Resolution [y] | 3120 |
| Sensor | AR1335 |
| Shutter | Rolling |
| Size / Dimension [x] | 1.142 inches |
| Size / Dimension [x] | 29 mm |
| Size / Dimension [y] | 29 mm |
| Size / Dimension [y] | 1.142 in |
| Type | CMOS |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 105.00 | |
Description
General part information
108013
4208 X 3120, 30 FPS, COLOR
Documents
Technical documentation and resources
No documents available
