Technical Specifications
Parameters and characteristics for this part
| Specification | 8-23-0114 |
|---|---|
| 1st Connector | I-PEX MHF4L Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | I-PEX MHF4L Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type [diameter] | 1.37 mm |
| Color | Black |
| Frequency - Max [Max] | 12 GHz |
| Length | 7.874 in |
| Length | 200 mm |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | I-PEX MHF4L to I-PEX MHF4L |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.56 | |
| 10 | $ 2.72 | |||
| 25 | $ 2.45 | |||
| 50 | $ 2.27 | |||
| 100 | $ 2.10 | |||
| 300 | $ 1.87 | |||
| 500 | $ 1.77 | |||
| 1000 | $ 1.65 | |||
| 2500 | $ 1.51 | |||
Description
General part information
8-23-0114

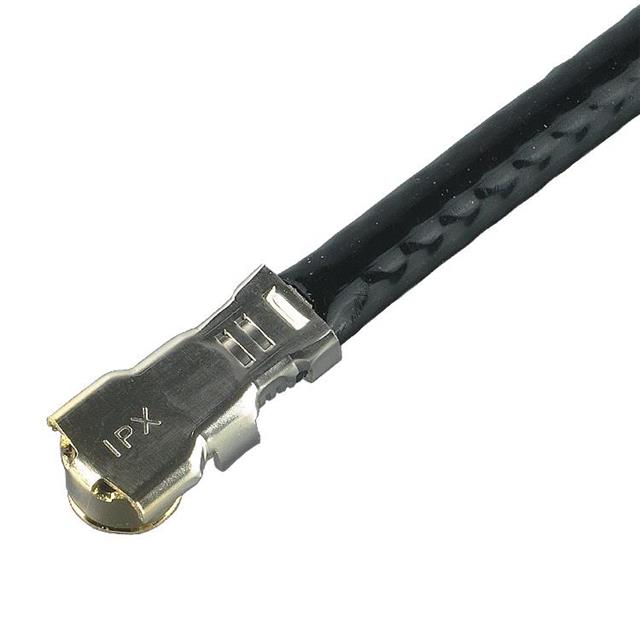

Cable Assembly Coaxial I-PEX MHF4L to I-PEX MHF4L 1.37mm OD Coaxial Cable 7.874" (200.00mm)
