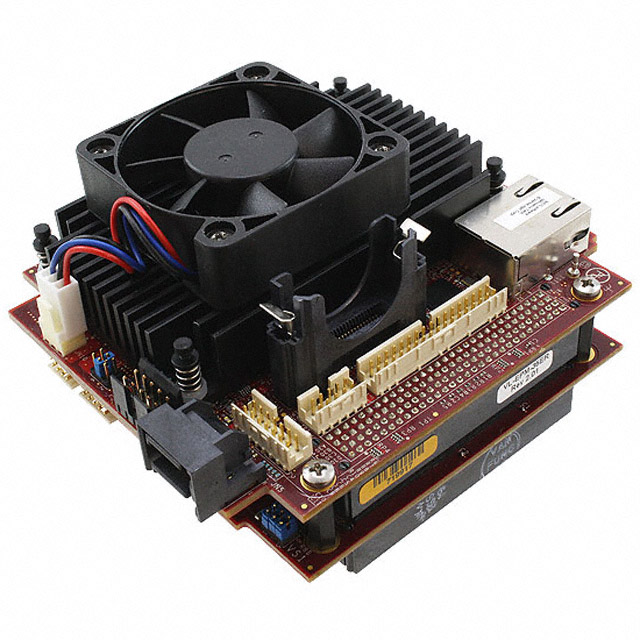

VL-EPM-35ER
ObsoleteVersaLogic Corporation
SBC 1.2GHZ 2 CORE 4GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VL-EPM-35ER
ObsoleteVersaLogic Corporation
SBC 1.2GHZ 2 CORE 4GB/0GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VL-EPM-35ER |
|---|---|
| Cooling Type | Fan |
| Core Processor | Intel Core 2 Duo SP9300 |
| Ethernet | GbE (2) |
| Expansion Site/Bus | PC/104-Plus |
| Form Factor | PC/104 |
| Number of Cores | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 15.5 W |
| RAM Capacity/Installed | 4 GB, 0 GB |
| RS-232 (422, 485) | 4 |
| Size / Dimension | 3.78 in, 4.21 in |
| Speed | 1.2 GHz |
| Storage Interface | eUSB, MiniBlade, SATA2 (2) |
| USB | USB 2.0 (6) |
| Video Outputs | VGA, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VL-EPM-35ER
Single Board Computer 1.2GHz 2 Core 4GB/0GB RAM Intel Core 2 Duo SP9300
