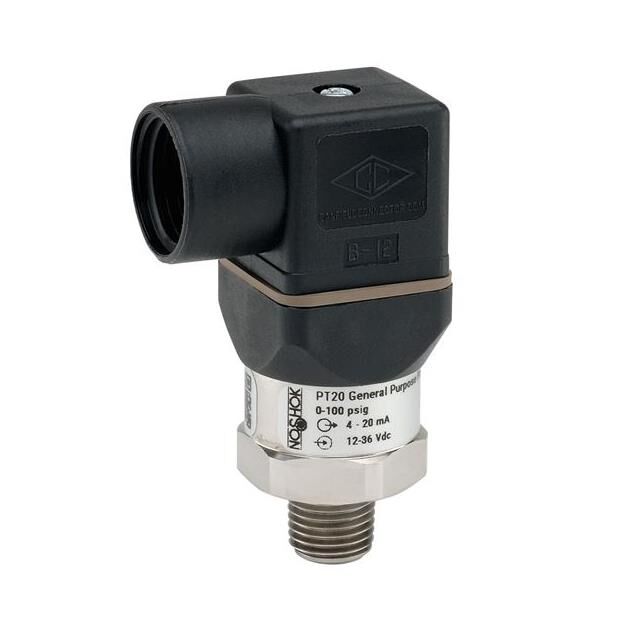

PT20-5000PSIG-1-5-2-14
ActiveNOSHOK
PRESSURE TRANSMITTER, GAUGE, 0TO5000PSI
Deep-Dive with AI
Search across all available documentation for this part.
PT20-5000PSIG-1-5-2-14
ActiveNOSHOK
PRESSURE TRANSMITTER, GAUGE, 0TO5000PSI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PT20-5000PSIG-1-5-2-14 |
|---|---|
| Accuracy | 0.5 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure | 10000 PSI |
| Maximum Pressure | 68947.57 kPa |
| Operating Pressure | 34473.79 kPa |
| Operating Pressure | 5000 PSI |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | 0 °C |
| Output [Max] | 10 V |
| Output [Min] | 0 mV |
| Output Type | Analog Voltage |
| Package / Case | Cylinder, Threaded |
| Port Size [custom] | NPT |
| Port Size [custom] | Male |
| Port Size [x] | 0.25 " |
| Port Size [x] | 6.35 mm |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PT20-5000PSIG-1-5-2-14
PT20-5000psig-1-5-2-14 is a PT20 series general purpose fixed range transmitter. It is a high performance instrument intended for use in industrial applications where the process media is compatible with the 316 stainless steel wetted parts. Typical applications include HVAC, hydraulics & pneumatics, general industrial and automation.
