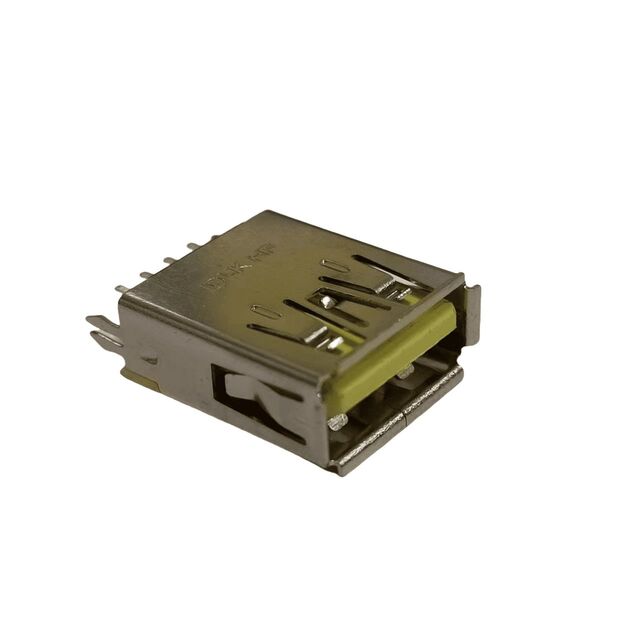

22709Y05201
ActiveDLK Electronics
USB 3.0 AF VT DIP TYPE H=11.1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
22709Y05201
ActiveDLK Electronics
USB 3.0 AF VT DIP TYPE H=11.1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 22709Y05201 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Receptacle |
| Insulation Color | Yellow |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Vertical |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 9 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Steel (SUS) |
| Shielding | Shielded |
| Specifications | USB 3.0 |
| Termination | PC Board, Solder |
| Voltage - Rated | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 1.39 | |
| 20 | $ 1.34 | |||
| 50 | $ 1.30 | |||
| 100 | $ 1.25 | |||
| 200 | $ 1.15 | |||
Description
General part information
22709Y05201
USB-A (USB TYPE-A) USB 3.0 Receptacle Connector 9 Position Surface Mount, Right Angle; Through Hole
