RIK-V-3:ATR-07
ActiveAim Dynamics
3PH 5/10 VDC INT 7" ATC COIL KIT
Deep-Dive with AI
Search across all available documentation for this part.
RIK-V-3:ATR-07
ActiveAim Dynamics
3PH 5/10 VDC INT 7" ATC COIL KIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RIK-V-3:ATR-07 |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 1000 A, 25000 A, 5000 A, 500 A, 10000 A, 2500 A, 50000 A |
| For Measuring | AC |
| Frequency [Max] | 60 Hz |
| Frequency [Min] | 50 Hz |
| Mounting Type | DIN Rail, Panel |
| Number of Channels [custom] | 3 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Output | Ratiometric |
| Output [Max] | 10 V, 5 V |
| Output [Min] | 0 mV |
| Response Time | 10 ms |
| Sensor Type | Rogowski Coil |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 996.05 | |
Description
General part information
RIK-V-3:ATR-07

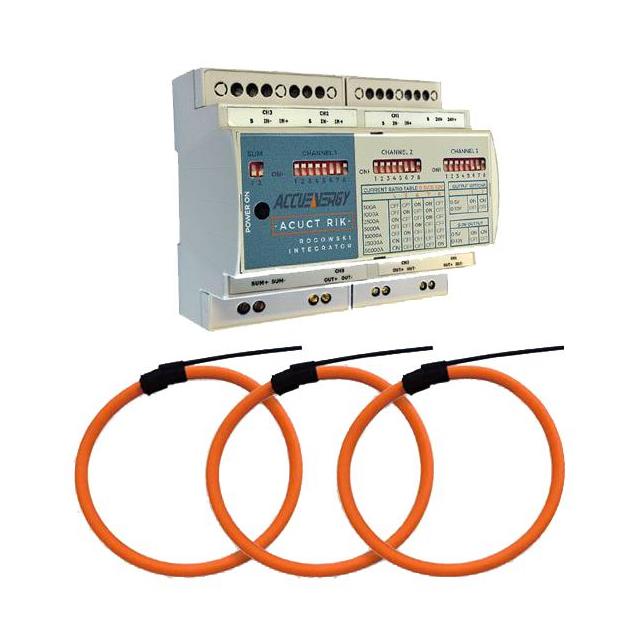

Current Sensor 500A, 1000A, 2500A, 5000A, 10000A, 25000A, 50000A (Selectable) 3 Channel Rogowski Coil
Documents
Technical documentation and resources
No documents available
