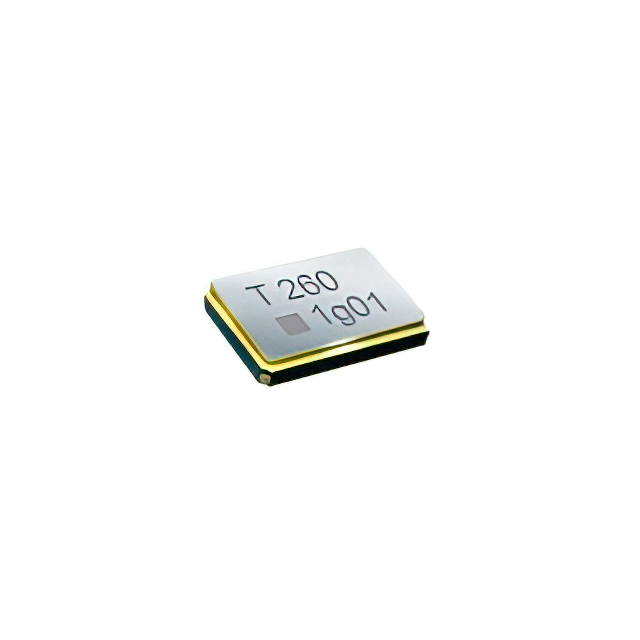

7M-30.400MAAE-T
ActiveFTS
3.2X2.5 XTAL 30PPM 30PPM 12PF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7M-30.400MAAE-T
ActiveFTS
3.2X2.5 XTAL 30PPM 30PPM 12PF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7M-30.400MAAE-T |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Frequency | 30.4 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Load Capacitance | 12 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.52 | |
| 10 | $ 0.45 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.24 | |||
| 3000 | $ 0.21 | |||
| 10000 | $ 0.19 | |||
| 25000 | $ 0.18 | |||
Description
General part information
7M-30.400MAAE-T
30.4 MHz ±30ppm Crystal 12pF 50 Ohms 4-SMD, No Lead
