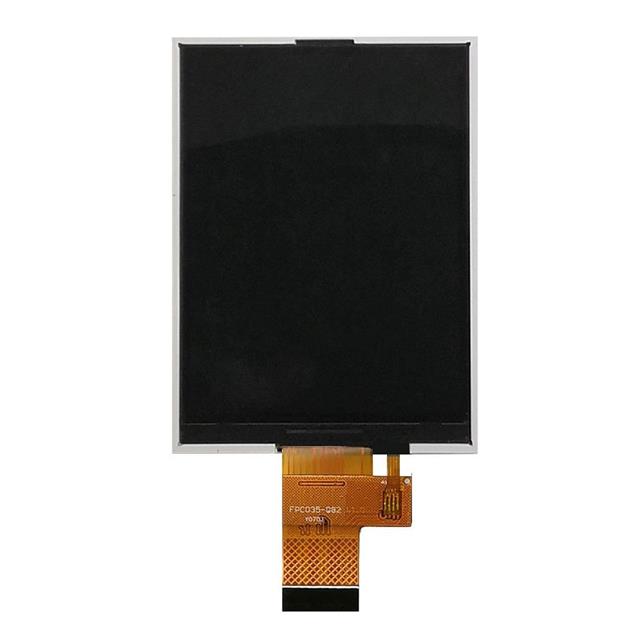

GLT035240320WH1
ActiveGlobalTech Display
3.5" LCD 240X320 WVA 500 NITS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GLT035240320WH1
ActiveGlobalTech Display
3.5" LCD 240X320 WVA 500 NITS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GLT035240320WH1 |
|---|---|
| Backlight | LED - White |
| Controller Type | ST7789V2 |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels [x] | 240 pixels |
| Dot Pixels [y] | 320 |
| Graphics Color | Green, Red, Blue |
| Interface | SPI |
| Touchscreen | Non-Touch |
| Viewing Area [x] | 52.56 mm |
| Viewing Area [y] | 70.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.60 | |
| 10 | $ 25.80 | |||
Description
General part information
GLT035240320WH1
Non-Touch Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color SPI 3.5" (88.90mm) 240 x 320
Documents
Technical documentation and resources
