57965-0040N-001
ActiveAces Connectors
3.0MM PITCH 4 POSITION MICRO LUC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
57965-0040N-001
ActiveAces Connectors
3.0MM PITCH 4 POSITION MICRO LUC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 57965-0040N-001 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post [x] | 3.18 mm |
| Contact Length - Post [x] | 0.125 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Locking Ramp |
| Features | Board Guide, Board Lock |
| Insulation Color | Black |
| Insulation Height | 7.4 mm |
| Insulation Height | 0.291 in |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Row Spacing - Mating | 3 mm |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.70 | |
| 10 | $ 1.29 | |||
| 100 | $ 0.99 | |||
| Tape & Reel (TR) | 250 | $ 0.90 | ||
| 500 | $ 0.84 | |||
| 750 | $ 0.80 | |||
| 1250 | $ 0.76 | |||
| 1750 | $ 0.73 | |||
| 2500 | $ 0.71 | |||
| 6250 | $ 0.65 | |||
| 12500 | $ 0.61 | |||
Description
General part information
57965-0040N-001

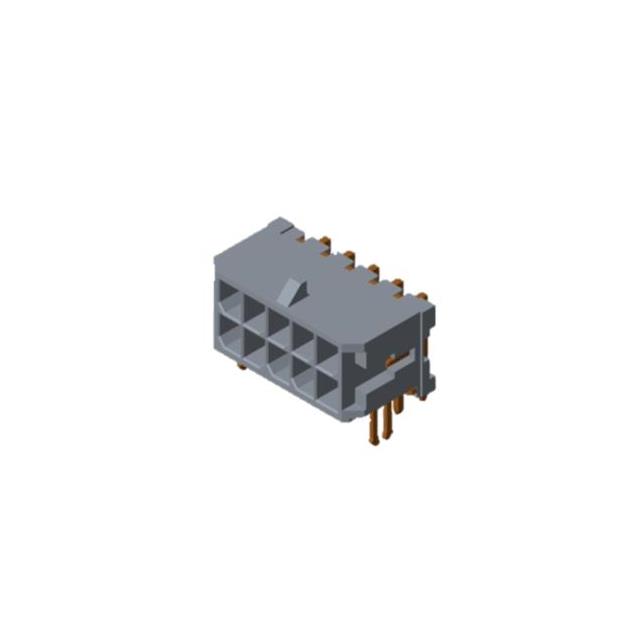

Connector Header Through Hole, Right Angle 4 position 0.118" (3.00mm)
