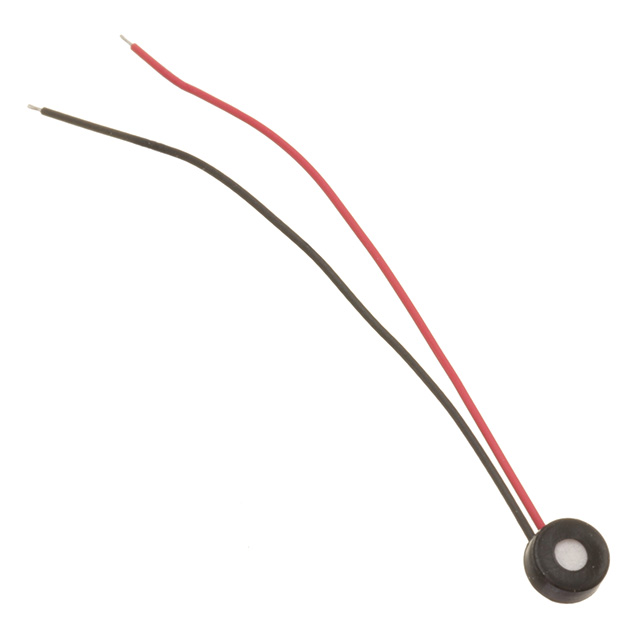

EM-4015LRW-40
ActiveSoberton Inc.
MIC COND ANLG OMNI -40DB 0.157"D
Deep-Dive with AI
Search across all available documentation for this part.
EM-4015LRW-40
ActiveSoberton Inc.
MIC COND ANLG OMNI -40DB 0.157"D
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EM-4015LRW-40 |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 50 Hz |
| Height (Max) [Max] | 0.067 " |
| Height (Max) [Max] | 1.7 mm |
| Impedance | 2.2 kOhms |
| Output Type | Analog |
| Port Location | Top |
| Ratings | IP67 |
| S/N Ratio | 58 dB |
| Sensitivity | -40 dB |
| Shape | Circular |
| Size / Dimension [diameter] | 4 mm |
| Size / Dimension [diameter] | 0.157 in |
| Termination | Wire Leads |
| Type | Electret Condenser |
| Voltage - Rated | 2 VDC |
| Voltage Range [Max] | 10 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.05 | |
| 10 | $ 1.67 | |||
| 25 | $ 1.54 | |||
| 40 | $ 1.48 | |||
| 100 | $ 1.36 | |||
| 300 | $ 1.24 | |||
| 500 | $ 1.18 | |||
| 1000 | $ 1.11 | |||
| 4900 | $ 1.09 | |||
Description
General part information
EM-4015LRW-40
50 Hz ~ 10 kHz Analog Microphone Electret Condenser 1 V ~ 10 V Omnidirectional (-40dB ±3dB @ 94dB SPL) Wire Leads
Documents
Technical documentation and resources
No documents available
