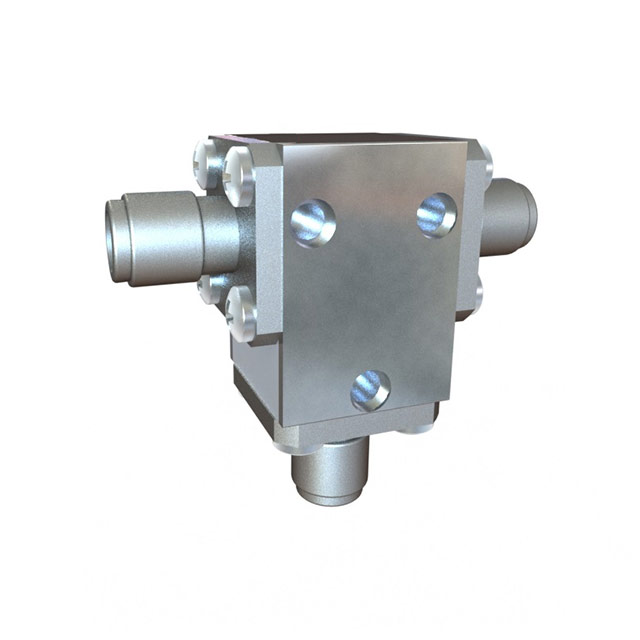

D3C1218
ActiveDiTom Microwave
12.00 - 18.00 GHZ CIRCULATOR
Deep-Dive with AI
Search across all available documentation for this part.
D3C1218
ActiveDiTom Microwave
12.00 - 18.00 GHZ CIRCULATOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D3C1218 |
|---|---|
| Connector Type | SMA-FEMALE |
| Frequency [Max] | 18 GHz |
| Frequency [Min] | 12 GHz |
| Insertion Loss | 0.45 dB |
| Isolation | 22 dB |
| Package / Case | Module, SMA Connectors |
| Power - Average Forward | 5 W |
| Type | Circulator |
| VSWR | 1.25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 450.00 | |
Description
General part information
D3C1218
12.00 - 18.00 GHZ CIRCULATOR
Documents
Technical documentation and resources
