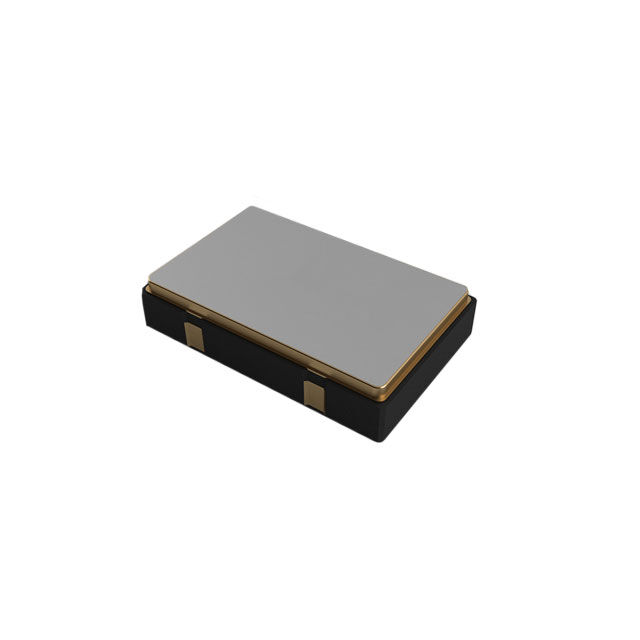

ISM92-3251AH-16.000MHZ
ActiveILSI
OSC XO 16MHZ 3.3V CMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ISM92-3251AH-16.000MHZ
ActiveILSI
OSC XO 16MHZ 3.3V CMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ISM92-3251AH-16.000MHZ |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 40 mA |
| Frequency | 16 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) | 1.6 mm |
| Height - Seated (Max) [Max] | 0.063 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS, TTL |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.28 | |
| 10 | $ 1.10 | |||
| 50 | $ 1.00 | |||
| 100 | $ 0.95 | |||
| 500 | $ 0.86 | |||
| Digi-Reel® | 1 | $ 1.28 | ||
| 10 | $ 1.10 | |||
| 50 | $ 1.00 | |||
| 100 | $ 0.95 | |||
| 500 | $ 0.86 | |||
Description
General part information
ISM92-3251AH-16.000MHZ
16 MHz XO (Standard) HCMOS, TTL Oscillator 3.3V Enable/Disable 4-SMD, No Lead
