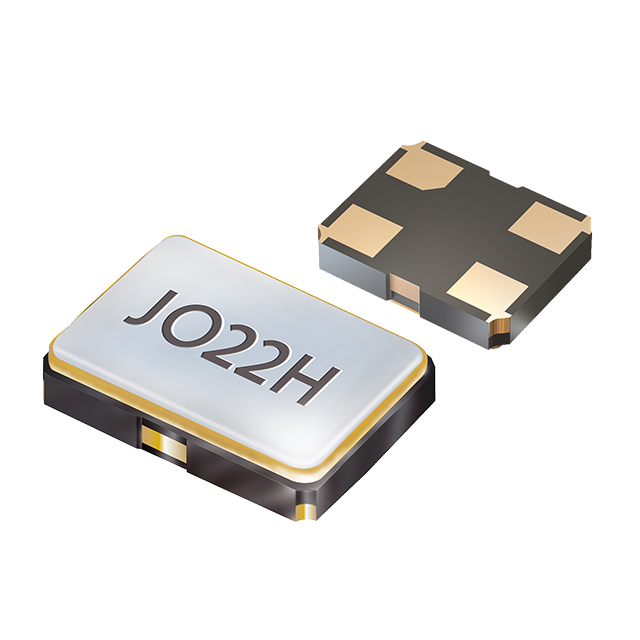

O 26,0-JO22H-F-2,5-1-T1-LF
ActiveJauch Quartz
XTAL OSC XO 26.0000MHZ HCMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
O 26,0-JO22H-F-2,5-1-T1-LF
ActiveJauch Quartz
XTAL OSC XO 26.0000MHZ HCMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | O 26,0-JO22H-F-2,5-1-T1-LF |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 10 ÁA |
| Current - Supply (Max) [Max] | 6 mA |
| Frequency | 26 MHz |
| Frequency Stability | 10 ppm |
| Function | Standby (Power Down) |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 1.43 | |
Description
General part information
O 26,0-JO22H-F-2,5-1-T1-LF
26 MHz XO (Standard) HCMOS Oscillator 2.5V Standby (Power Down) 4-SMD, No Lead
