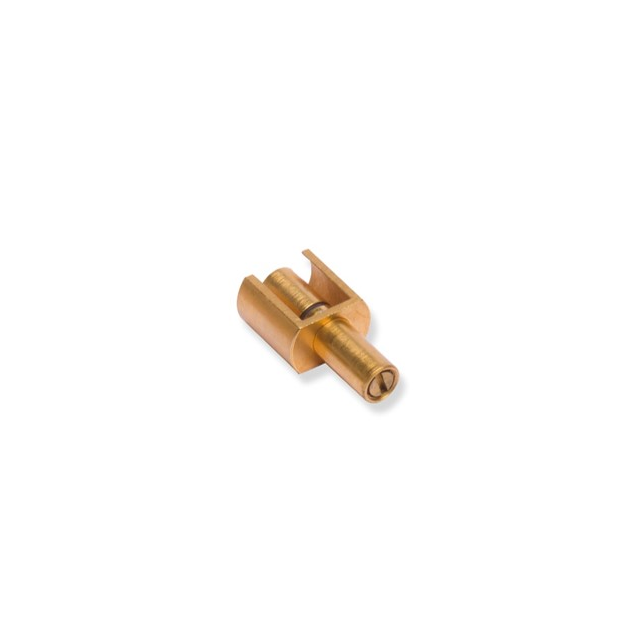

AT 27268
ActiveEXXELIA Temex
CAP TRIMMER 0.3-1.2PF 500V SMD
Deep-Dive with AI
Search across all available documentation for this part.
AT 27268
ActiveEXXELIA Temex
CAP TRIMMER 0.3-1.2PF 500V SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AT 27268 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range [Max] | 1.2 pF |
| Capacitance Range [Min] | 0.3 pF |
| Dielectric Material | Sapphire |
| Features | General Purpose |
| Height - Seated (Max) [Max] | 5.8 mm |
| Height - Seated (Max) [Max] | 0.23 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Q @ Freq | 250 MHz, 5000 |
| Size / Dimension [diameter] | 0.075 in |
| Size / Dimension [diameter] | 1.9 mm |
| Voltage - Rated | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.00 | |
Description
General part information
AT 27268
0.3 ~ 1.2pF Trimmer Capacitor 500 V Top Surface Mount
Documents
Technical documentation and resources
No documents available
