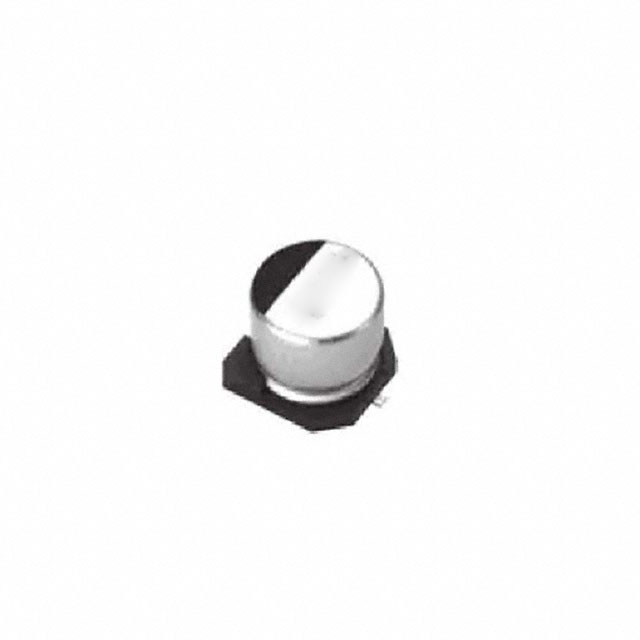

VE-471M1CTR-1010S
ActiveSurge
CAP ALUM 470UF 20% 16V SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VE-471M1CTR-1010S
ActiveSurge
CAP ALUM 470UF 20% 16V SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VE-471M1CTR-1010S |
|---|---|
| Applications | General Purpose |
| Capacitance | 470 µF |
| Height - Seated (Max) [Max] | 0.413 in |
| Height - Seated (Max) [Max] | 10.5 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current @ Low Frequency | 400 mA |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Surface Mount Land Size [x] | 0.406 in |
| Surface Mount Land Size [x] | 10.3 mm |
| Surface Mount Land Size [y] | 10.3 mm |
| Surface Mount Land Size [y] | 0.406 " |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VE-471M1CTR-1010S
470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
