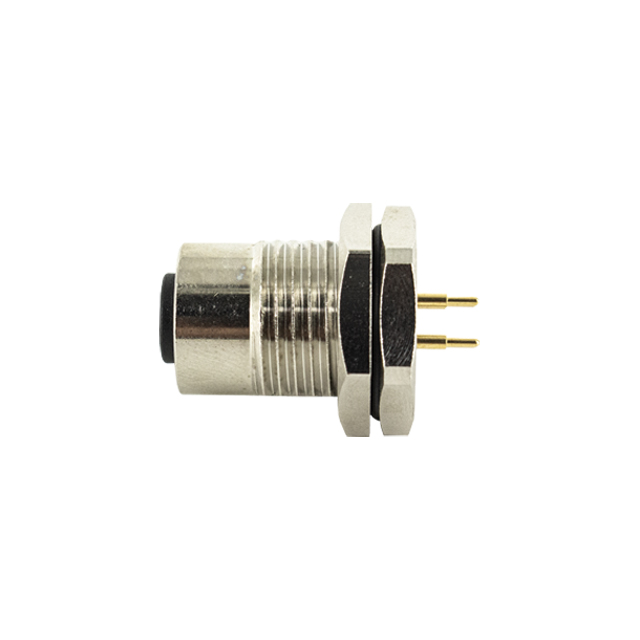

216A-04FSF
ActiveATTEND Technology
M12 A-CODE RECEPTACLE, 4PIN FEMA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
216A-04FSF
ActiveATTEND Technology
M12 A-CODE RECEPTACLE, 4PIN FEMA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 216A-04FSF |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Material | Brass |
| Current Rating (Amps) | 4 A |
| Ingress Protection | Waterproof |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.60 | |
| 10 | $ 10.45 | |||
| 25 | $ 9.44 | |||
| 40 | $ 8.98 | |||
| 80 | $ 8.34 | |||
| 230 | $ 7.48 | |||
| 440 | $ 7.02 | |||
| 945 | $ 6.52 | |||
Description
General part information
216A-04FSF
4 Position Circular Connector Receptacle, Female Sockets Solder
