UV-005DQC
ActiveOSI Optoelectronics, Inc.

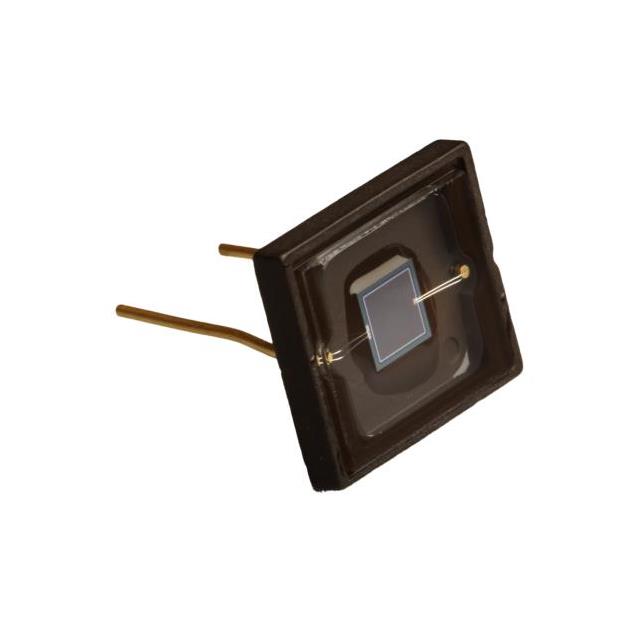

SENSOR PHOTODIODE 980NM 2DIP MOD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UV-005DQC
ActiveOSI Optoelectronics, Inc.
SENSOR PHOTODIODE 980NM 2DIP MOD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UV-005DQC |
|---|---|
| Active Area | 5.7 mm² |
| Color - Enhanced | Ultraviolet (UV) |
| Diode Type | Planar Diffusion |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 2-DIP Module |
| Response Time | 200 ns |
| Responsivity @ nm | 0.33 A/W |
| Voltage - DC Reverse (Vr) (Max) [Max] | 5 V |
| Wavelength | 980 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.82 | |
| 5 | $ 34.77 | |||
| 10 | $ 33.63 | |||
| 40 | $ 31.63 | |||
| 80 | $ 30.75 | |||
| 120 | $ 30.27 | |||
Description
General part information
UV-005DQC
Photodiode 980nm 200ns 2-DIP Module
