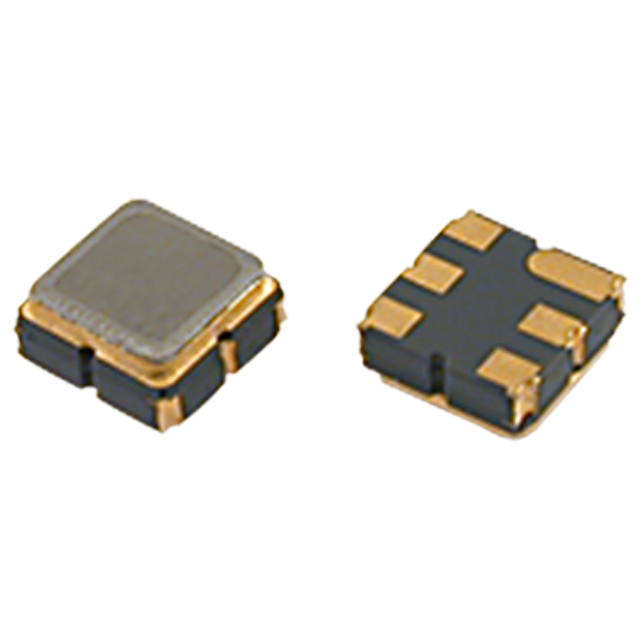

MP05309
ActiveGolledge Electronics Ltd
1435.0 MHZ GSRF TA1654A RF SAW F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP05309 |
|---|---|
| Applications | Wireless |
| Bandwidth | 50 MHz |
| Frequency - Center | 1.435 GHz |
| Height (Max) | 1.4 mm |
| Height (Max) [Max] | 0.055 in |
| Insertion Loss | 5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.96 | |
| 10 | $ 2.40 | |||
| 25 | $ 1.94 | |||
| 50 | $ 1.82 | |||
| 100 | $ 1.73 | |||
| 250 | $ 1.68 | |||
| 500 | $ 1.63 | |||
| Digi-Reel® | 1 | $ 2.96 | ||
| 10 | $ 2.40 | |||
| 25 | $ 1.94 | |||
| 50 | $ 1.82 | |||
| 100 | $ 1.73 | |||
| 250 | $ 1.68 | |||
| 500 | $ 1.63 | |||
| Tape & Reel (TR) | 1000 | $ 1.59 | ||
| 2000 | $ 1.53 | |||
| 3000 | $ 1.50 | |||
| 5000 | $ 1.47 | |||
Description
General part information
MP05309
1.435GHz Frequency Wireless RF SAW Filter (Surface Acoustic Wave) 5dB 50MHz Bandwidth 6-SMD, No Lead
