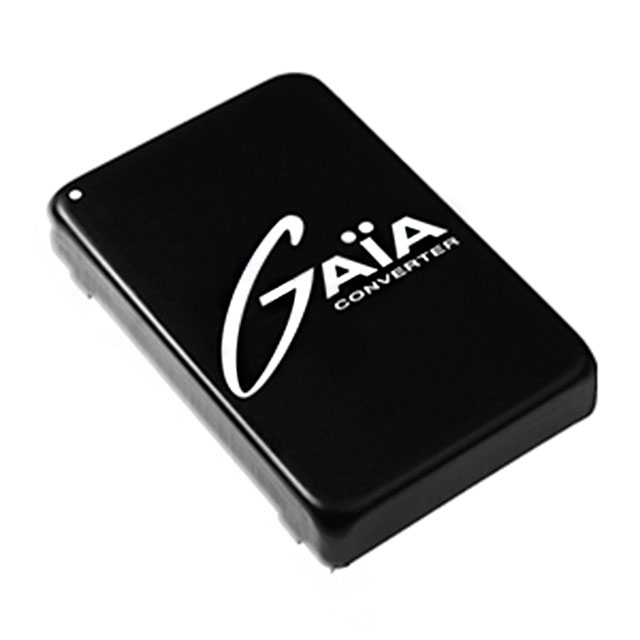

MGDDI-60-R-E
ActiveGaia Converter
DC DC CONVERTER 12V 12V 60W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGDDI-60-R-E
ActiveGaia Converter
DC DC CONVERTER 12V 12V 60W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGDDI-60-R-E |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 2.5 A |
| Current - Output (Max) [Max] | 2.5 A |
| Efficiency | 91 % |
| Features | Baseplate |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 60 W |
| Size / Dimension [x] | 2.86 " |
| Size / Dimension [x] | 72.7 mm |
| Size / Dimension [y] | 1.89 " |
| Size / Dimension [y] | 47.9 mm |
| Size / Dimension [z] | 12.5 mm |
| Size / Dimension [z] | 0.49 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 160 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 195.37 | |
Description
General part information
MGDDI-60-R-E
Isolated Module DC DC Converter 2 Output 12V 12V 2.5A, 2.5A 12V - 160V Input
