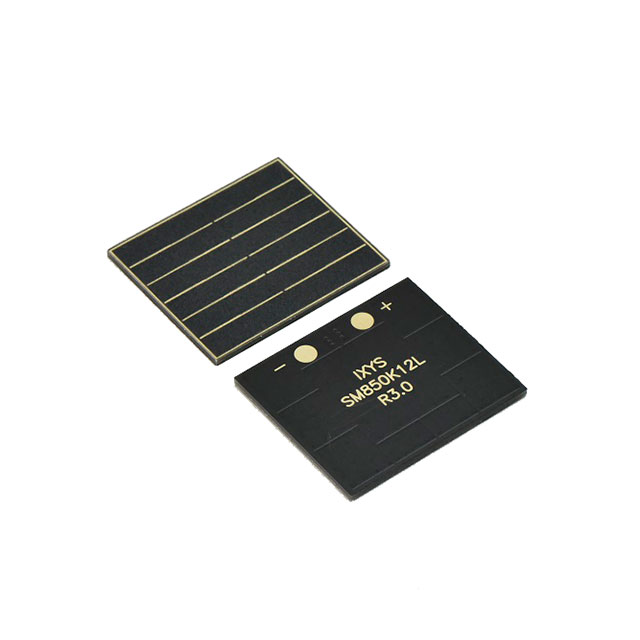

SM850K12L
ActiveANYSOLAR Ltd
MONOCRYST SOLAR CELL 221MW 8.29V
Deep-Dive with AI
Search across all available documentation for this part.
SM850K12L
ActiveANYSOLAR Ltd
MONOCRYST SOLAR CELL 221MW 8.29V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM850K12L |
|---|---|
| Current - Short Circuit (Isc) | 35.1 mA |
| Current @ Pmpp | 32.9 mA |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 221 mW |
| Size / Dimension [x] | 38.5 mm |
| Size / Dimension [x] | 1.516 " |
| Size / Dimension [y] | 1.299 in |
| Size / Dimension [y] | 33 mm |
| Size / Dimension [z] | 2 mm |
| Size / Dimension [z] | 0.079 " |
| Type | Monocrystalline |
| Voltage - Open Circuit | 8.29 V |
| Voltage @ Pmpp | 6.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.28 | |
| 25 | $ 6.57 | |||
| 50 | $ 6.24 | |||
| 100 | $ 5.96 | |||
| 250 | $ 5.59 | |||
| 500 | $ 5.30 | |||
Description
General part information
SM850K12L
Monocrystalline Solar Cell 221 mW 8.29 V
Documents
Technical documentation and resources
No documents available
