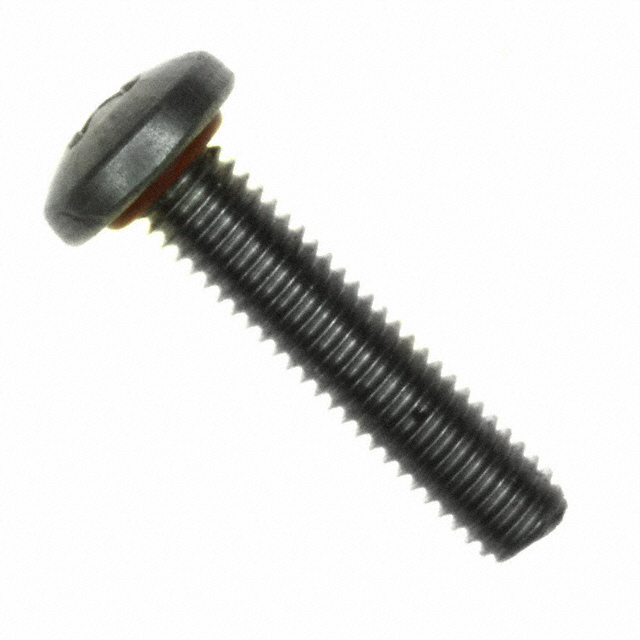

R10-32X7/8 2701
ActiveAPM HEXSEAL
MACHINE SCREW PAN PHILLIPS 10-32
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R10-32X7/8 2701
ActiveAPM HEXSEAL
MACHINE SCREW PAN PHILLIPS 10-32
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R10-32X7/8 2701 |
|---|---|
| Drive Type | Phillips |
| Features | Self Sealing |
| Head Diameter [diameter] | 10.24 mm |
| Head Diameter [diameter] | 0.403 in |
| Head Height | 0.133 " |
| Head Height | 3.38 mm |
| Length - Below Head | 0.875 in |
| Length - Below Head | 22.23 mm |
| Length - Below Head [x] | 0.875 in |
| Length - Overall [x] | 1.008 in |
| Length - Overall [x] | 25.6 mm |
| Material | Stainless Steel |
| Screw Head Type | Pan Head |
| Thread Size | #10-32 |
| Type | Machine Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 250 | $ 0.65 | |
Description
General part information
R10-32X7/8 2701
#10-32 Pan Head Machine Screw Phillips Drive Stainless Steel
