Technical Specifications
Parameters and characteristics for this part
| Specification | GFC2002P-GPAE-JP |
|---|---|
| Background Color | Yellow/Green |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [x] | 4.51 mm |
| Character Size [y] | 1.95 mm |
| Controller Type | ST7066U-0A |
| Display Format [x] | 20 |
| Display Format [y] | 2 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.35 mm |
| Dot Size [y] | 0.52 mm |
| Interface | Parallel |
| Number of Characters | 40 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 72 mm |
| Outline L x W x H [y] | 32 mm |
| Outline L x W x H [z] | 11.5 mm |
| Text Color | Dark Blue |
| Viewing Area [x] | 54 mm |
| Viewing Area [y] | 15 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 19.75 | |
| 10 | $ 14.96 | |||
| 100 | $ 13.17 | |||
| 500 | $ 11.97 | |||
| 1000 | $ 10.77 | |||
Description
General part information
GFC2002P-GPAE-JP

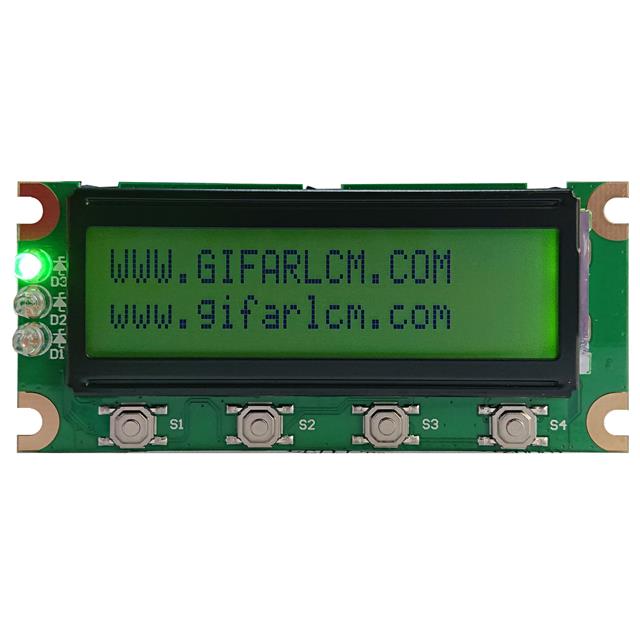

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 72.00mm x 32.00mm x 11.50mm
