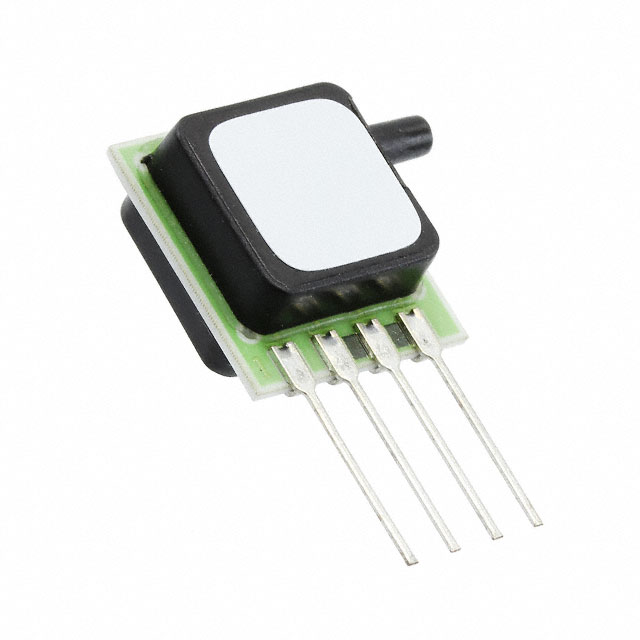

BLVR-L10D-B1NS-N
ActiveAmphenol All Sensors Corporation
SENSOR 0.36PSID 0.08" .032V 4SIP
Deep-Dive with AI
DocumentsDual Die Compensation Appl
Technical Specifications
Parameters and characteristics for this part
| Specification | BLVR-L10D-B1NS-N |
|---|---|
| Accuracy | 2 % |
| Applications | Board Mount |
| Maximum Pressure | 7.23 PSI |
| Maximum Pressure | 49.83 kPa |
| Mounting Type | Through Hole |
| Operating Pressure | 2.49 kPa |
| Operating Pressure | 0.36 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output | 3.3 V |
| Output [Max] | 32 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 4-SIP, Dual Ports, Same Side |
| Port Size | Tube, Dual, Male |
| Port Size | 0.08 " |
| Port Size | 2.04 mm |
| Port Style | Barbless |
| Pressure Type | Differential |
| Supplier Device Package | 4-SIP |
| Termination Style | PC Pin |
| Voltage - Supply | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.95 | |
Description
General part information
BLVR-L10D-B1NS-N
Pressure Sensor ±0.36PSI (±2.49kPa) Differential Male - 0.08" (2.04mm) Tube, Dual 0 mV ~ 32 mV (3.3V) 4-SIP, Dual Ports, Same Side
