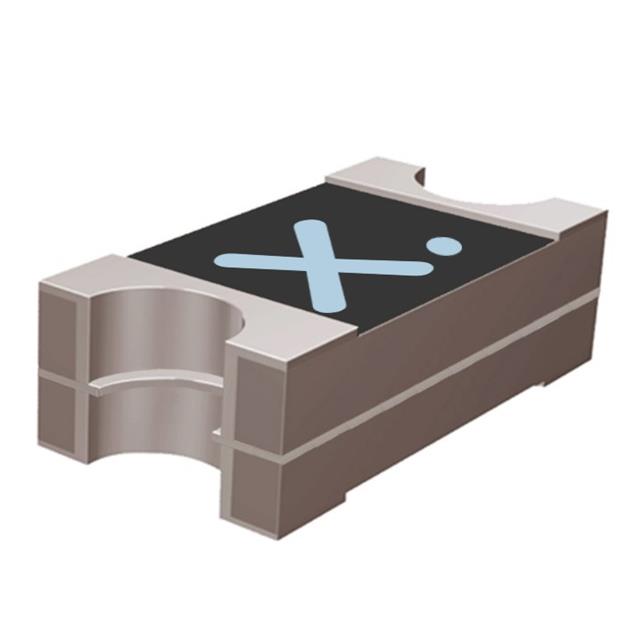

JAK 6002133 NA52
ActiveMatsuo Electric
FUSE BOARD MNT 12.5A 60VDC 1206
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JAK 6002133 NA52
ActiveMatsuo Electric
FUSE BOARD MNT 12.5A 60VDC 1206
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JAK 6002133 NA52 |
|---|---|
| Approval Agency | UL |
| Breaking Capacity @ Rated Voltage | 100 A |
| Current Rating (Amps) | 12.5 Amps |
| DC Cold Resistance | 0.0036 Ohms |
| Fuse Type | Board Mount |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3216 Metric |
| Package / Case | 1206 |
| Package / Case | Concave |
| Response Time | Fast Blow |
| Voltage Rating - DC | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.02 | |
| 5 | $ 0.85 | |||
| 10 | $ 0.79 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.54 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.46 | |||
| Digi-Reel® | 1 | $ 1.02 | ||
| 5 | $ 0.85 | |||
| 10 | $ 0.79 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.54 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.46 | |||
| Tape & Reel (TR) | 2000 | $ 0.40 | ||
| 4000 | $ 0.39 | |||
| 6000 | $ 0.38 | |||
| 10000 | $ 0.36 | |||
Description
General part information
JAK 6002133 NA52
12.5 A AC 60 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric), Concave
