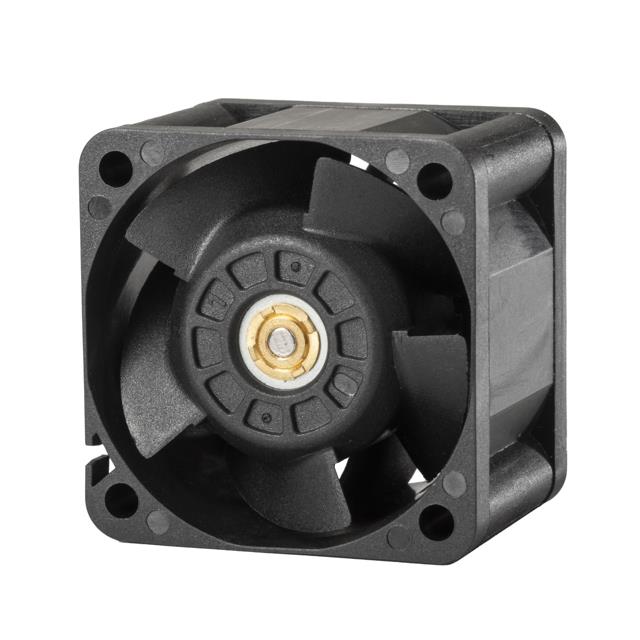

RDH4028B5
ActivePelonis Technologies
FAN AXIAL 40X28MM BALL 5VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RDH4028B5
ActivePelonis Technologies
FAN AXIAL 40X28MM BALL 5VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RDH4028B5 |
|---|---|
| Air Flow | 0.26 m³/min |
| Air Flow | 9.4 CFM |
| Approval Agency | cUL, UL, CE |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Locked Rotor Protection, Polarity Protection |
| Noise | 32 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 1.75 W |
| RPM | 7500 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 0.23 in H2O |
| Static Pressure | 57.3 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 5 V |
| Width [y] | 28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.38 | |
| 10 | $ 11.55 | |||
| 25 | $ 10.82 | |||
| 50 | $ 9.94 | |||
| 100 | $ 9.34 | |||
| 250 | $ 8.63 | |||
| 500 | $ 7.17 | |||
Description
General part information
RDH4028B5
Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 9.4 CFM (0.26m³/min) 2 Wire Leads
