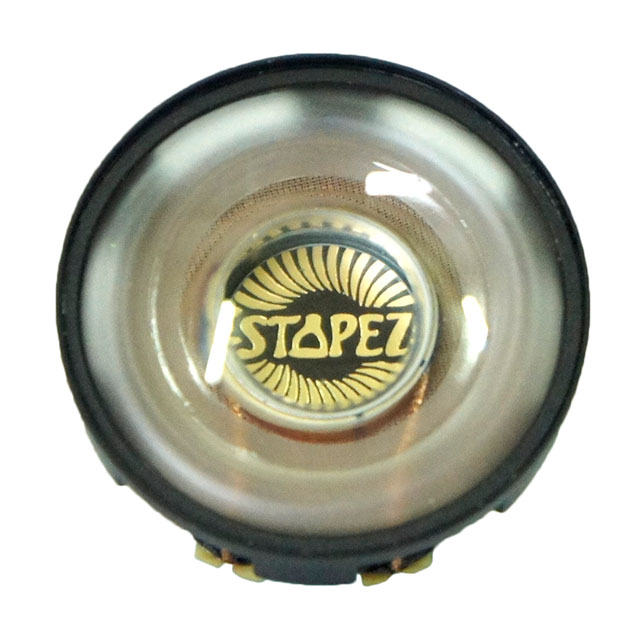

BGC-D40-22-4-002
ObsoleteGlass Acoustic Innovations Co. Ltd.
SPEAKER 4OHM 5W TOP PORT 83DB
Deep-Dive with AI
Search across all available documentation for this part.
BGC-D40-22-4-002
ObsoleteGlass Acoustic Innovations Co. Ltd.
SPEAKER 4OHM 5W TOP PORT 83DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BGC-D40-22-4-002 |
|---|---|
| Efficiency - dBA | 83 dBA |
| Efficiency - Testing | 500 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 10 Hz |
| Height - Seated (Max) [Max] [z] | 22 mm |
| Height - Seated (Max) [Max] [z] | 0.866 in |
| Impedance | 4 Ohms |
| Material - Cone [custom] | Glass Composite |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 15 W |
| Power - Rated | 5 W |
| Shape | Round |
| Size / Dimension [diameter] | 1.567 in |
| Size / Dimension [diameter] | 39.8 mm |
| Technology | Magnetic |
| Termination | Solder Eyelet |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BGC-D40-22-4-002
4 Ohms General Purpose Speaker 5 W 10 Hz ~ 20 kHz Top Round
