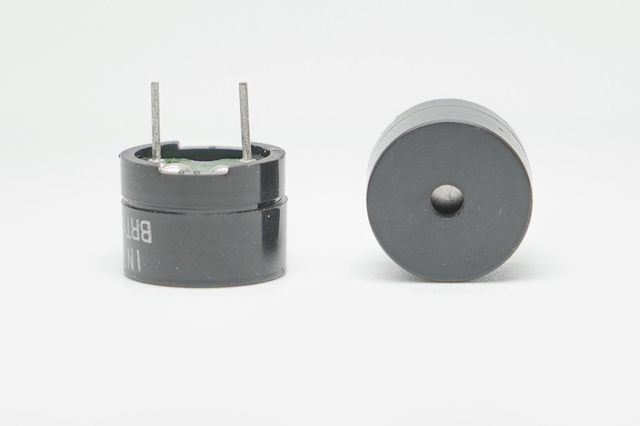

BRT1209P-01
ActiveIntervox
BUZZER MAGNETIC 1.5V 12MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BRT1209P-01 |
|---|---|
| Current - Supply | 30 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.048 kHz |
| Height - Seated (Max) [Max] [z] | 0.335 in |
| Height - Seated (Max) [Max] [z] | 8.5 mm |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Size / Dimension [diameter] | 12 mm |
| Size / Dimension [diameter] | 0.472 in |
| Sound Pressure Level (SPL) | 80 dB |
| Technology | Magnetic |
| Termination | PC Pins |
| Voltage - Rated | 1.5 VDC |
| Voltage Range [Max] | 2 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 1.13 | |
| 500 | $ 1.06 | |||
| 1000 | $ 1.01 | |||
Description
General part information
BRT1209P-01
Buzzers Transducer, Externally Driven Magnetic 1.5 V 30mA 2.048kHz 80dB @ 1.5V, 10cm Through Hole PC Pins
